小型光开关2×2A
Feature
Compact structure
Low IL
Fast switch time
Application
PON Network
Protection
Instrumentation
Network monitor

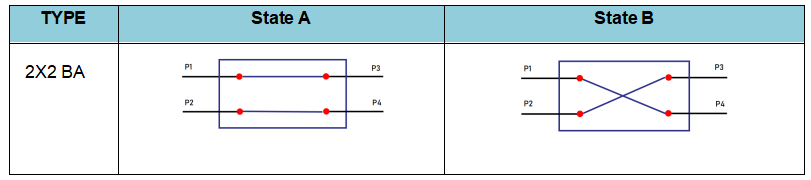

光路示意图

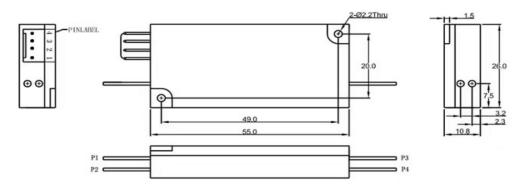

外形尺寸(mm)
订购信息 HC－OSW-2×2R-A-B-C-D-E-F
|
A |
B |
C |
D |
E |
F |
|
测试波长 |
开关类型 |
光纤类型 |
光纤直径 |
光纤长度 |
连接头类型 |
|
850: 850nm |
3L: 自锁 |
SM: 单模9/125 |
025: Φ0.25mm |
05: 0.5m |
00: None |
|
1310: 1310nm |
3N: 非自锁 |
M1: 多模50/125 |
09: Φ0.9mm |
10: 1.0m |
FP: FC/UPC |
|
1550: 1550nm |
5L: 自锁 |
M2: 多模62.5/125 |
X: 其他 |
15: 1.5m |
FA: FC/APC |
|
D: 1310/1550nm |
5N: 非自锁 |
X: 其他 |
|
X: 其他 |
SP: SC/UPC |
|
X: 其他 |
|
|
|
|
SA: SC/APC |
|
|
|
|
|
|
LP: LC/UPC |
|
|
|
|
|
|
LA: LC/APC |
|
|
|
|
|
|
X: 其他 |
|
Parameters |
Unit |
HC-OSW-F2×2A |
|
|
Operating Wavelength |
nm |
SM:1260~1620 |
MM:850±40 |
|
Test Wavelength |
nm |
1310 / 1550 |
850 |
|
Insertion Loss |
dB |
≤1.0（typical :0.8） |
|
|
Wavelength Dependent Loss |
dB |
≤0.25 |
|
|
Temperature Dependent Loss |
dB |
≤0.2 |
|
|
Polarization Dependent Loss |
dB |
≤0.05 |
|
|
Return Loss |
dB |
SM≥50，MM≥30 |
|
|
Crosstalk |
dB |
SM≥55，MM≥35 |
|
|
Repeatability |
dB |
≤±0.02 |
|
|
Swtich Time |
ms |
≤8 |
|
|
Durability |
times |
≥10 million |
|
|
Operating Voltage |
V |
3.0 or 5.0 |
|
|
Optical Power |
mw |
≤500 |
|
|
Operating Temperature |
℃ |
-5~+70 |
|
|
Storage Temperature |
℃ |
-40~+85 |
|
|
Operating Humidity |
RH% |
5~95 |
|
|
Dimension |
mm |
(L)55.0×(W)26.0×(H)10.0 ±0.2 |
|
|
Note:1.Within operating temperature and all SOP. |
|||
|
2.Excluding connector, and add 0.2dB IL for each connector. |
|||
Pin Configurations
|
Type |
Optical Path |
Electric Drive |
Status Sensor |
|
|
Pin 2 |
Pin 2-3 |
|||
|
F2X2A Non-Latching |
P1-P3、P2-P4 |
V |
GND -- |
Open |
|
P1-P4、P2-P3 |
-- |
-- |
Close |
|
Electrical Specification
|
Type |
Voltage |
Current |
Resistance |
|
5V Non-latching |
4.5~5.5V |
26~32mA |
175Ω |
|
3V Non-latching |
2.7~3.3V |
39~47mA |
70Ω |
