MEMS光开关 1×2
Features
Ultra-Compact Structure
Fast Switch Speed
Low Insertion Loss & PDL
High Reliability & Stability
Applications
Network Monitor System
Protection
PON Network
Instrumentation
Compliance
Telcordia GR-1221
Telcordia GR-1073

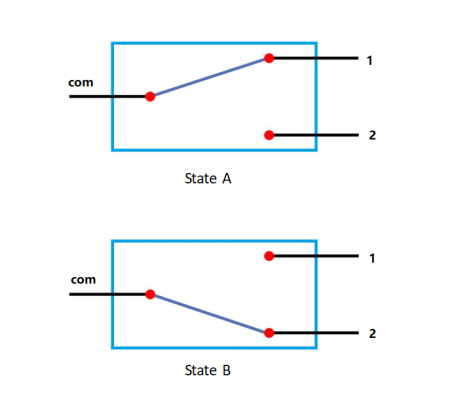

Optical Route
Dimension(mm)
Ordering Information: HC-MEMS-1×2-A-B-C-D
|
A |
B |
C |
D |
|
Fiber Type |
Wavelength |
Fiber Dimension |
Fiber Length |
|
S:SingleMode X:other |
C:C Band L:L Band O:O Band D:C+L Band X:other |
25:Φ0.25mm X:other |
05:0.5m 10:1.0m X:other
|
|
Parameters |
Unit |
MFSWS-1×2 |
|
Operating Wavelength |
nm |
1060±50 |
|
Insertion Loss |
dB |
≤ 1.0 |
|
WDL |
dB |
≤ 0.3 |
|
TDL |
dB |
≤ 0.3 |
|
PDL |
dB |
≤ 0.1 |
|
Return Loss |
dB |
≥ 50 |
|
Crosstalk |
dB |
≥ 50 |
|
Repeatability |
dB |
≤ ±0.02 |
|
Switching Time |
ms |
≤ 8 |
|
Durability |
times |
≥ 10 billion |
|
Operating Voltage |
V |
≤ 8 |
|
Switching Mode |
- |
Non-Latching |
|
Fiber Type |
- |
Corning HI1060 |
|
Optical Power |
mW |
≤ 500 |
|
Operating Temperature |
℃ |
-20 ~ +85 |
|
Storage Temperature |
℃ |
-40 ~ +85 |
|
Operating humidity |
% |
5 ~ 95 |
|
Dimension |
mm |
Φ5.5×42 |
|
Note: 1. Within operating temperature and all SOP. 2. Excluding connector, and add 0.3dB IL for a pair of connectors. |
||
Pin Configuration
|
Optical Route |
State |
1(+) |
2(-) |
3(GND) |
|
COM-1 |
A |
0V |
GND |
GND |
|
COM-2 |
B |
5 ~ 8V |
GND |
GND |
