偏振光合束器分束器

A

B

C

D

E

PMIS

Wavelength

Axis Alignment

Pigtail Type

Length

Connector

1310=1310nm

1550=1550nm

F=Fast Axis Blocked

B=Both Axis Working

1=250um

2=900um loose tube

3=3mm loose tube

H=0.5m

8=0.8m

1=1.0m

5=1.5m

2=2m

0=None

1=FC/UPC

2=FC/APC

3=SC/APC

4=SC/UPC

5=LC/PC

Type

Value

Operating Wavelength (nm)

1310 or 1550

Bandwidth (nm)

±40

Typ. Insertion Loss (at 23℃)

≤0.4

Max. Insertion Loss (at 23℃)

≤0.6

Extinction Ratio (at 23℃) (dB)

≥22

Return Loss (dB)

≥50

Fiber Type

Panda fiber

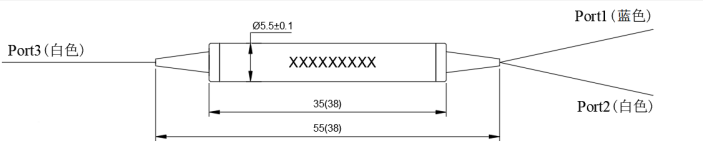

Package Dimension (mm)

φ5.5×L38

Maximum Power Handling (mW)

≤300

Operating Temperature (℃)

-0 to +70

Storage Temperature (℃)

-40～+85
