C and C+ EDFA SPEC
Product Introduction
This document specifies the requirements of a DWDM C-band amplifier. The amplifier modules can be operated at constant gain (Automatic Gain Control AGC), constant output power (Automatic Power Control, APC). There are isolators at input and output port. Integrated VOA can be automatically adjusted to achieve smooth gain spectrum. Optical supervisory channel (OSC) is optional function integrated in the module, it can be dropped or added.

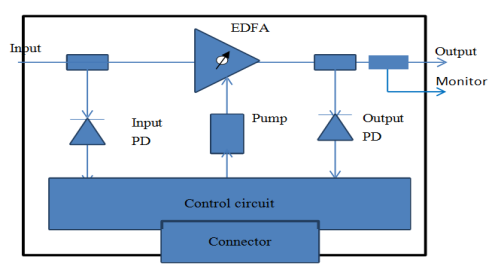

Amplifier diagram：

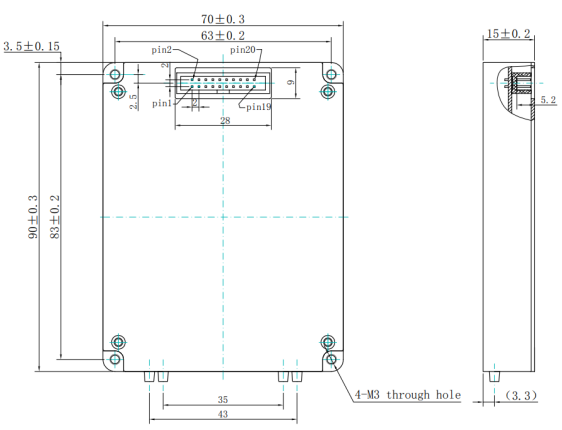

Dimension unit: mm
Performance
Absolute maximum ratings
|
Parameter |
Min |
Max |
Unit |
|
Operating case temperature |
-5 |
55 |
°C |
|
Operating relative humidity |
5 |
95 |
% |
|
Storage Temperature |
-40 |
75 |
°C |
|
Storage relative humidity |
5 |
95 |
% |
|
Power consumption |
|
10 |
W |
Optical characters
Integrated VOA amplifier （VGA）
EX1: OPA16/G25V
|
Item |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Operation wavelength |
1529 |
|
1561 |
nm |
40 or 48 ch is Optional |
|
1528 |
|
1568 |
nm |
||
|
Input Power Range |
-32 |
-9 |
-4 |
dBm |
|
|
Gain range |
20 |
25 |
30 |
dB |
Can be set |
|
Output Power Range |
-7 |
|
16.5 |
dBm |
|
|
Gain Flatness |
|
1 |
1.5 |
dB |
|
|
Noise Figure |
|
|
5.5 |
dB |
@rated Gain |
|
Loss alarm Threshold |
-33 |
|
|
dBm |
Can be adjusted |
EX2: OPA16/G20V
|
Item |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Operation wavelength |
1529 |
|
1561 |
nm |
40 or 48 ch is Optional |
|
1528 |
|
1568 |
nm |
||
|
Input Power Range |
-31 |
-4 |
1 |
dBm |
|
|
Gain range |
15 |
20 |
25 |
dB |
Can be set |
|
Output Power Range |
-11 |
|
16.5 |
dBm |
|
|
Gain Flatness |
|
1 |
1.5 |
dB |
|
|
Noise Figure |
|
|
5.5 |
dB |
@rated Gain |
|
Loss alarm Threshold |
-32 |
|
|
dBm |
Can be adjusted |
EX3: OLA20/G20V
|
Item |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Operation wavelength |
1529 |
|
1561 |
nm |
40 or 48 ch is Optional |
|
1528 |
|
1568 |
nm |
||
|
Input Power Range |
-27 |
0 |
5 |
dBm |
|
|
Gain range |
15 |
20 |
25 |
dB |
Can be set |
|
Output Power Range |
-7 |
|
20.5 |
dBm |
|
|
Gain Flatness |
|
1 |
1.5 |
dB |
|
|
Noise Figure |
|
|
6 |
dB |
@rated Gain |
|
Loss alarm Threshold |
-28 |
|
|
dBm |
Can be adjusted |
EX4: OLA20/G25V
|
Item |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Operation wavelength |
1529 |
|
1561 |
nm |
40 or 48 ch is Optional |
|
1528 |
|
1568 |
nm |
||
|
Input Power Range |
-32 |
-5 |
0 |
dBm |
|
|
Gain range |
20 |
25 |
30 |
dB |
Can be set |
|
Output Power Range |
-7 |
|
20.5 |
dBm |
|
|
Gain Flatness |
|
1 |
1.5 |
dB |
|
|
Noise Figure |
|
|
6 |
dB |
@rated Gain |
|
Loss alarm Threshold |
-33 |
|
|
dBm |
Can be adjusted |
Fixed Gain amplifier （FGA）
EX1: OBA20/G16
|
Item |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Operation wavelength |
1529 |
|
1561 |
nm |
40 or 48 ch is Optional |
|
1528 |
|
1568 |
nm |
||
|
Input Power Range |
-25 |
4 |
7 |
dBm |
|
|
Gain range |
13 |
16 |
19 |
dB |
Can be set |
|
Output Power Range |
-9 |
20 |
20.5 |
dBm |
|
|
Gain Flatness |
|
1 |
1.5 |
dB |
@rated Gain |
|
Noise Figure |
|
|
6 |
dB |
@rated Gain |
|
Loss alarm Threshold |
-26 |
|
|
dBm |
Can be adjusted |
EX2: OBA20/G12
|
Item |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Operation wavelength |
1529 |
|
1561 |
nm |
40 or 48 ch is Optional |
|
1528 |
|
1568 |
nm |
||
|
Input Power Range |
-21 |
8 |
11 |
dBm |
|
|
Gain range |
9 |
12 |
15 |
dB |
Can be set |
|
Output Power Range |
-9 |
20 |
20.5 |
dBm |
|
|
Gain Flatness |
|
1 |
1.5 |
dB |
@rated Gain |
|
Noise Figure |
|
|
6.5 |
dB |
@rated Gain |
|
Loss alarm Threshold |
-22 |
|
|
dBm |
Can be adjusted |
EX3: OPA16/G20
|
Item |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Operation wavelength |
1529 |
|
1561 |
nm |
40 or 48 ch is Optional |
|
1528 |
|
1568 |
nm |
||
|
Input Power Range |
-32 |
-4 |
-1 |
dBm |
|
|
Gain range |
17 |
20 |
23 |
dB |
Can be set |
|
Output Power Range |
-12 |
16 |
16.5 |
dBm |
|
|
Gain Flatness |
|
1 |
1.5 |
dB |
@rated Gain |
|
Noise Figure |
|
|
5.5 |
dB |
@rated Gain |
|
Loss alarm Threshold |
-33 |
|
|
dBm |
Can be adjusted |
General specification（ Optical general specification）
|
Item |
Min |
Typ |
Max |
Units |
Note |
|
Operating wavelength range |
1528 |
|
1568 |
nm |
|
|
Polarization dependence gain |
|
|
0.3 |
dB |
|
|
Polarization mode dispersion |
|
|
0.5 |
ps |
|
|
Return Loss |
45 |
|
|
dB |
UPC connector |
OSC specification (If there is no OSC channel, skip this chapter)
Optical supervisor channel is optional, Add/Drop outside, it means drop from PA input and add at BA output. OSC channel wavelength can be customized, center wavelength such as 1490, 1510, 1625nm.
|
Item |
Min. |
Typ. |
Max. |
Unit |
Note |
|
OSC channel wavelength |
1507 |
1510 |
1513 |
nm |
optional |
|
OSC insertion loss |
|
|
1 |
dB |
|
Pigtail
|
Function |
connector |
Length(cm) |
description |
|
Input |
LC/UPC |
50±5 |
900um,tight,white |
|
Output |
LC/UPC |
50±5 |
900um,tight,white |
|
Monitor |
LC/UPC |
50±5 |
900um,tight,white |
|
OSCI |
LC/UPC |
50±5 |
900um,tight,white |
|
OSCO |
LC/UPC |
50±5 |
900um,tight,white |
Electrical interface
EDFA module electrical connector is 20 pin male
|
Pin # |
Name |
Pin # |
Name |
|
1 |
+5VDC |
11 |
Module Temperature Alarm (Active High) |
|
2 |
+5VDC |
12 |
Reserve |
|
3 |
Ground |
13 |
Pump Temperature Alarm (Active High) |
|
4 |
Ground |
14 |
Pump Bias Alarm (Active High) |
|
5 |
Serial Input LVTTL |
15 |
Loss of Input Alarm (Active High) |
|
6 |
Serial Output LVTTL |
16 |
Output/Gain Alarm (Active High) |
|
7 |
Ground |
17 |
Ground |
|
8 |
Ground |
18 |
Ground |
|
9 |
Amplifier Disable Input (Active High) |
19 |
+5VDC |
|
10 |
Reset Input (Active Low) |
20 |
+5VDC |
Note：Alarm active is high 3.3V
