DRA module SPEC

The amplifier modules can be operated at constant pump power (Automatic Pump Power Control, APPC).

Product Introduction

This document specifies the requirements of a C-band distributed Raman amplifier. The amplifier modules can be operated at constant pump power (Automatic Pump Power Control, APPC). Different wavelength pump power can be adjusted to achieve smooth gain spectrum for the DWDM network application.  It can amplify the single channel signal, in order to achieve the best OSNR; the module integrated a narrow band filter to suppress the ASE power.



Counter-propagating pumping configuration, Pre-DRA:



Co-propagating pumping configuration, Boost-DRA:

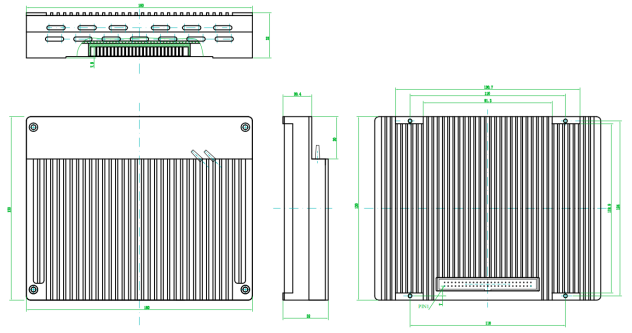

Dimension (unit: mm)
160×130×32:



性能参数

Performance
Absolute maximum ratings

Parameter

Min

Max

Unit

Operating case temperature

-5

55

°C

Operating relative humidity

5

95

%

Storage Temperature

-40

75

°C

Storage relative humidity

5

95

%

Power consumption



45

W





Optical characters
PRE-DRA for DWDM network application
Name1: Pre-DRA G26 for DWDM         Vendor PN: DRAOP-G26-5D-LU-CW

Item

Min.

Typ.

Max.

Unit

Note

Operation wavelength

1528



1565

nm



Input power

-36



-10

dBm



Effective Gain



26

28

dB

@ G652 fiber >40km Attenuation coefficient 0.20dB/km

Gain flatness





2.5

dB

@G=26

Pump wavelength



1423~1465



nm



Total Pump out power

1300





mw

@/pump 500mw setting

Noise figure





0

dB



Input signal threshold

-38





dBm







Name2: Pre-DRA G14 for DWDM         Vendor PN: DRAOP-G14-5D-LU-CW

Item

Min.

Typ.

Max.

Unit

Note

Operation wavelength

1528



1565

nm



Input power

-36



-10

dBm



Effective Gain

12

14

15

dB

@ G652 fiber >40km Attenuation coefficient 0.20dB/km

Gain flatness





2.2

dB

@G=14

Pump wavelength



1423~1465



nm



Total Pump out power

700





mw

@/pump 500mw setting

Noise figure





0

dB



Input signal threshold

-38





dBm







Boost-DRA
Name: Boost-DRA         Vendor PN: DRAOB-G10-5D-LU

Parameter

Min

Typ

Max

Units

Remark

Operation wavelength



1550



nm



Input power

0



14

dBm



Effective Gain @in=14 dBm



10



dB

@ G652 fiber >40km ,Attenuation coefficient 0.20dB/km

Total Pump out power

700





mw

@/pump 500mw setting, Two pumps

Input signal threshold

0





dBm







General specification

Item

Min

Typ

Max

Units

Note

Polarization dependence gain





0.5

dB



Polarization mode dispersion





0.5

ps



Return Loss

45





dB

UPC connector





Pigtail

Function

connector

Length(cm)

description

Input

LC/UPC

50±5

900um,tight,white

Output

LC/UPC

50±5

900um,tight,white





Electrical interface

DRA module electrical connector is 50 pin male, DC3-50p 2.54mm

NO.

Pin Name

NO.

Pin Name

1

+5.0V

2

+5.0V

3

+5.0V

4

+5.0V

5

+5.0V

6

+5.0V

7

+5.0V

8

+5.0V

9

+5.0V

10

GND

11

GND

12

GND

13

GND

14

GND

15

GND

16

GND

17

GND

18

GND

19

RX  (LVTTL)

20

TX  (LVTTL)

21

NC

22

NC

23

NC

24

NC

25

GND

26

GND

27

Signal Power Alarm

28

Reflection Power Alarm

29

Pump Current Alarm

30

Pump Temp Alarm

31

Case Temp Alarm

32

RESET

33

GND

34

GND

35

GND

36

GND

37

GND

38

GND

39

GND

40

GND

41

GND

42

+5.0V

43

+5.0V

44

+5.0V

45

+5.0V

46

+5.0V

47

+5.0V

48

+5.0V

49

+5.0V

50

+5.0V

NoteAlarm active is high 3.3 V
