光分路器2×2
Features
Low Excess Loss
Uniform Power Splitting
Rugged Package
Excellent Environmental &
Mechanical Stability
Applications
Long-haul Telecommunications
Digital, Hybrid and AM-Video
Systems
CATV Systems
High Speed LocalArea
Networks
Fiber Sensors

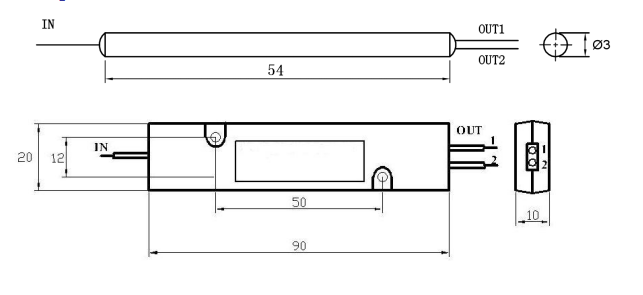

Package Size(Unit：mm)
Ordering information ：HC-WBC-2×2-A-B-C-D-E-F-G-H
|
A |
B |
C |
D |
E |
F |
G |
H |
|
Mode |
Wavelength |
Package size |
Coupling Ratio |
Fiber Type |
Fiber Diameter |
Fiber length |
Connector |
|
SM: simple mode MM: Muiti Mode |
85：850nm 13: 1310nm 15: 1550nm 85/13:850/1310nm 13/15:1310/1550nm X:Others |
1:￠3x54mm 2:90×20×10mm 3:100×80×10mm 4:120×80×18mm 5:140×115×18mm X: Others |
0=50/50 1=45/55 2=40/60 3=35/65 4=30/70 5=25/75 6=20/80 7=15/85 8=10/90 9=05/95 X=Others |
SM: 9/125 M1：MM 0M1: （62.5/125） M2：MM 0M2 M3：MM 0M3 X: Others |
25:250um 90:900um 20:2.0mm 30: 3.0mm X: Others |
05:0.5m 10:1.0m 15:1.5m X:Others |
OO：None FP: FC/PC FA: FC/APC SP: SC/PC SA:SC/APC LP: LC/PC LA: LC/APC X: Others |
|
Type |
WBC 2×2 |
||||
|
Operating Wavelength (nm) |
1310 or 1550 |
1310&1550 |
850 or 1310 |
850&1310 |
|
|
Operating Bandwidth (nm) |
±40 |
||||
|
Excess Loss(dB) |
≤ 0.07 |
≤ 0.4 |
|||
|
Insertion Loss (dB) |
50/50 |
≤3.4 |
≤3.6 |
≤3.7 |
≤4.0 |
|
40/60 |
≤4.4/2.6 |
≤4.7/2.7 |
≤4.7/2.7 |
≤5.0/3.0 |
|
|
33/67 |
≤5.3/2.1 |
≤5.7/2.2 |
≤5.7/2.2 |
≤6.2/2.5 |
|
|
30/70 |
≤5.7/1.9 |
≤6.0/1.9 |
≤6.0/2.1 |
≤6.4/2.4 |
|
|
20/80 |
≤7.6/1.3 |
≤7.9/1.3 |
≤7.8/1.4 |
≤8.2/1.7 |
|
|
10/90 |
≤10.7/0.65 |
≤11.2/0.75 |
≤11.2/0.9 |
≤11.8/1.2 |
|
|
5/95 |
≤13.8/0.4 |
≤14.2/0.4 |
≤14.5/0.7 |
≤15/1.0 |
|
|
3/97 |
≤16.2/0.3 |
≤16.5/0.3 |
≤16.7/0.4 |
≤17/0.7 |
|
|
2/98 |
≤18.1/0.25 |
≤18.5/0.3 |
≤18.6/0.6 |
≤19/0.65 |
|
|
1/99 |
≤21.2/0.2 |
≤21.6/0.25 |
≤22/0.5 |
≤22.5/0.55 |
|
|
PDL (dB) |
≤0.15 |
/ |
|||
|
Directivity(dB) |
≥55 |
≥35 |
|||
|
Return Loss(dB) |
≥50 |
≥30 |
|||
|
Operation temperature (℃) |
-10~+70 |
||||
|
Storage Temperature (℃) |
-40～+85 |
||||
|
Port Configuration |
2×2 |
||||
|
Pigtail and Connector Type |
|
||||
|
Fiber Type |
SM、9/125 |
MM(OM1,OM2,OM3) |
|||
|
Dimensions(mm) |
Ø 3×54 |
||||
