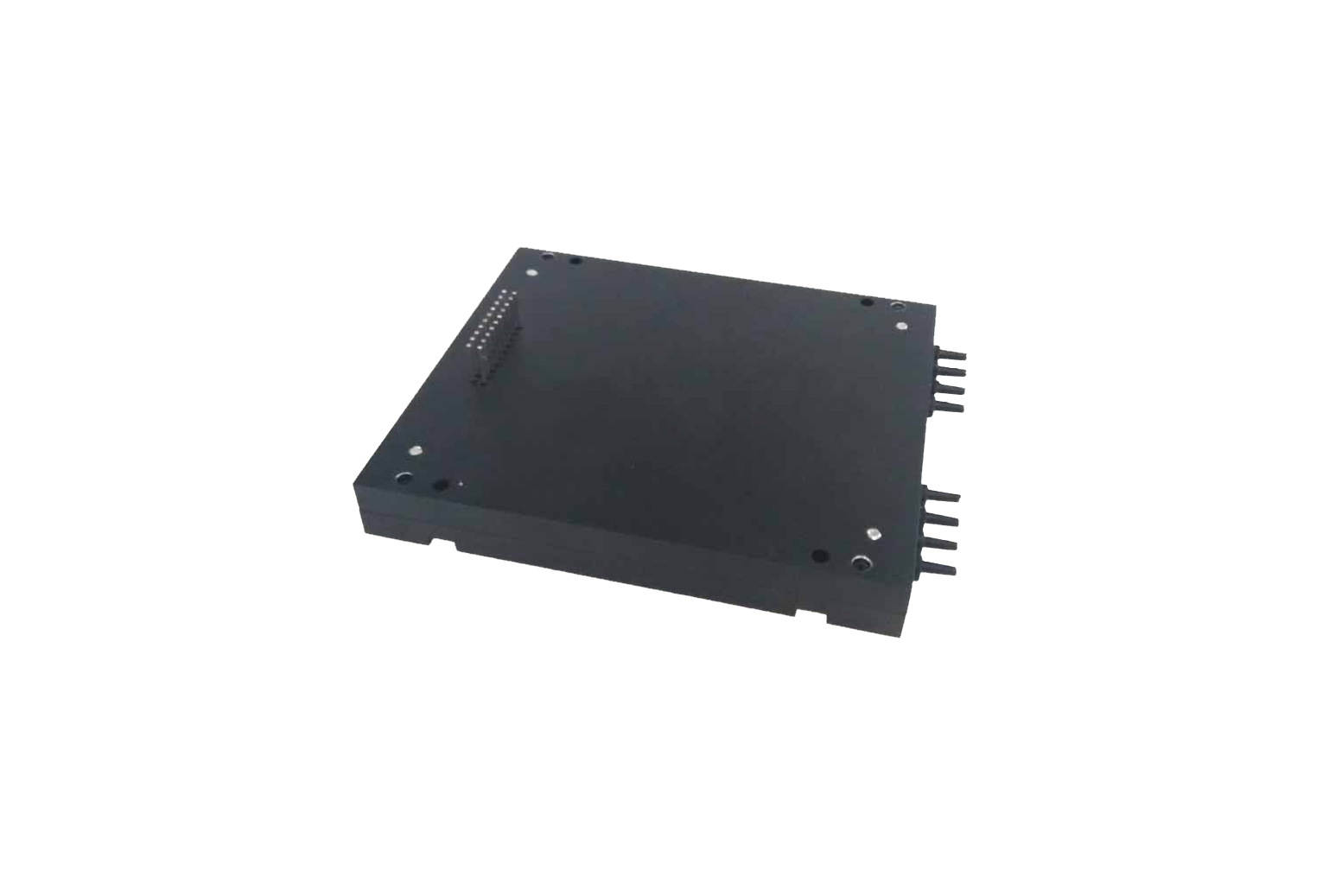

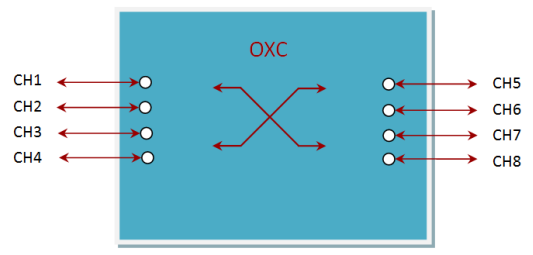

矩阵光开关4×4模块

Parameters

Unit

FSW-4×4-SM-L-1310/1550-90-05-FA

Wavelength Range

nm

1260 ~ 1650

Test Wavelength

nm

1310 / 1550

Insertion Loss

dB

≤2.5

Return Loss

dB

 SM ≥ 50

Crosstalk

dB

 SM ≥ 55

PDL

dB

≤ 0.15

WDL

dB

≤ 0.35

Repeatability

dB

≤ ±0.05

Power Supply

V

5.0 ± 5%

Durability

Cycles

≥ 10 Million

Switching Time

ms

≤8

Optical Power

mW

≤500

Switch type

latching

Operating Temperature

℃

-5 ~ +70

Storage Temperature

℃

-40 ~ +85

Relative Humidity

%

5 ~ 95

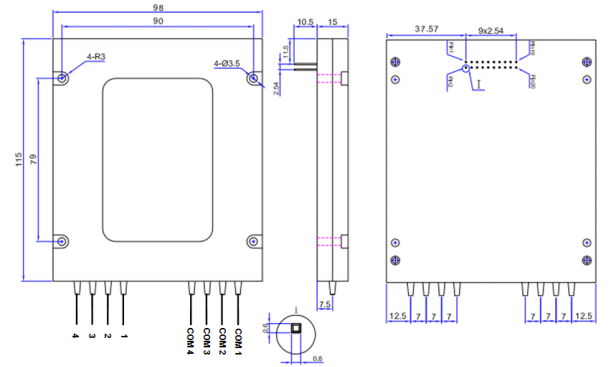

Dimension

mm

(L)115×(W)98×(H)15 ±0.2

Pin No.

Signal Name

I / O

    Description

1

1D0

Input

TTL, COM 1 Channel selection bit 0

2

1D1

Input

TTL, COM 1 Channel selection bit 1

3

2D0

Input

TTL, COM 2 Channel selection bit 0

4

2D1

Input

TTL, COM 2 Channel selection bit 1

5

/EN

Input

Channel Selection Enabled.

6

RST

Input

Reset

7

VCC

Input

5.0±5% VDC Power Supply (max 250mA).

8

GND

Input

Ground

9

3D0

Input

TTL, COM 3 Channel selection bit 0

10

3D1

Input

TTL, COM 3 Channel selection bit 1

11

4D0

Input

TTL, COM 4 Channel selection bit 0

12

4D1

Input

TTL, COM 4 Channel selection bit 1

13

1S0

Output

TTL, COM 1 Switch status output bit 0

14

1S1

Output

TTL, COM 1 Switch status output bit 1

15

2S0

Output

TTL, COM 2 Switch status output bit 0

16

2S1

Output

TTL, COM 2 Switch status output bit 1

17

3S0

Output

TTL, COM 3 Switch status output bit 0

18

3S1

Output

TTL, COM 3 Switch status output bit 1

19

4S0

Output

TTL, COM 4 Switch status output bit 0

20

4S1

Output

TTL, COM 4 Switch status output bit 1

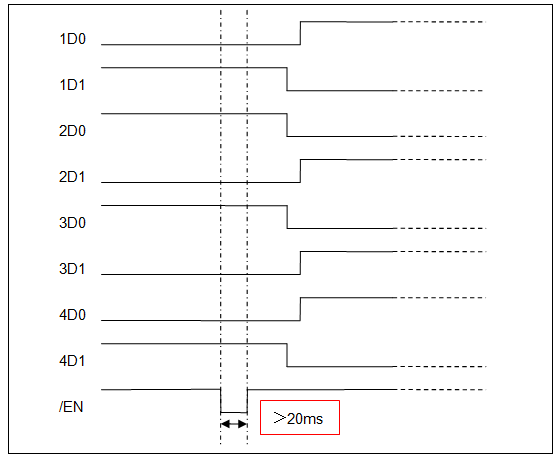

Input

Active Channel

Output

/EN

1D1,1D0_2D1,2D0_

3D1,3D0_4D1,4D0

1S1,1S0_2S1,2S0_

3S1,3S0_4S1,4S0

0

00_01_10_11

COM 1→1

COM 2→2

COM 3→3

COM 4→4

00_01_10_11

00_01_11_10

COM 3→4

COM 4→3

00_01_11_10

00_10_01_11

COM 2→3

COM 3→2

COM 4→4

00_10_01_11

00_10_11_01

COM 3→4

COM 4→2

00_10_11_01

00_11_01_10

COM 2→4

COM 3→2

COM 4→3

00_11_01_10

00_11_10_01

COM 3→3

COM 4→2

00_11_10_01

01_00_10_11

COM 1→2

COM 2→1

COM 3→3

COM 4→4

01_00_10_11

01_00_11_10

COM 3→4

COM 4→3

01_00_11_10

01_10_00_11

COM 2→3

COM 3→1

COM 4→4

01_10_00_11

01_10_11_00

COM 3→4

COM 4→1

01_10_11_00

01_11_00_10

COM 2→4

COM 3→1

COM 4→3

01_11_00_10

01_11_10_00

COM 3→3

COM 4→1

01_11_10_00

10_00_01_11

COM 1→3

COM 2→1

COM 3→2

COM 4→4

10_00_01_11

10_00_11_01

COM 3→4

COM 4→2

10_00_11_01

10_01_00_11

COM 2→2

COM 3→1

COM 4→4

10_01_00_11

10_01_11_00

COM 3→4

COM 4→1

10_01_11_00

10_11_00_01

COM 2→4

COM 3→1

COM 4→2

10_11_00_01

10_11_01_00

COM 3→2

COM 4→1

10_11_01_00

11_00_01_10

COM 1→4

COM 2→1

COM 3→2

COM 4→3

11_00_01_10

11_00_10_01

COM 3→3

COM 4→2

11_00_10_01

11_01_00_10

COM 2→2

COM 3→1

COM 4→3

11_01_00_10

11_01_10_00

COM 3→3

COM 4→1

11_01_10_00

11_10_00_01

COM 2→3

COM 3→1

COM 4→2

11_10_00_01

11_10_01_00

COM 3→2

COM 4→1

11_10_01_00

1

x

Hold

Hold
