FWDM单器件
Features
Wide Operating Wavelength Range
Low Insertion Loss
Ultra Flat Wide Passband
High Channel Isolation
High Stability and reliability
Epoxy-free on Optical Path
Applications
WDM System
MAN
CATV System
FTTH Tri-Play System

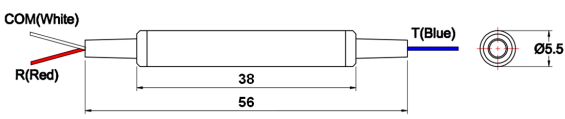

Dimension (Unit:mm)
Φ5.5×38 mm
Ordering Information ：HC－FWDM－A－B－C－D
|
A |
B |
C |
D |
|
Wavelength |
Fiber Type |
Fiber Length |
Connector |
|
T55R1314 T49R1315 T1314R15 T131415R62 T62R131415 T65R131415 |
1=Bare fiber 2=900um loose tube |
05=0.5m 10=1.0m 15=1.5m 20=2.0m
|
00=None FA=FC/APC FP=FC/PC SA=SC/APC SP=SC/PC LA=LC/APC LP=LC/PC S=Specify |
|
Type |
Pass Band (nm) |
Reflection Band (nm) |
Test Wavelength |
|
T55R1314 |
1540-1560 |
1260-1360/1480-1500 |
T1550 R1310/1490 |
|
T49R1315 |
1480-1500 |
1260-1360/1540-1560 |
T1490 R1310/1550 |
|
T1314R15 |
1260-1500 |
1535-1620 |
T1310/1490 R1550 |
|
T131415R16 |
1260-1580 |
1600-1670 |
T1310/1490/1550 R1625 |
|
T62R131415 |
1610-1680 |
1260-1590 |
T1625 R1310/1490/1550 |
|
T65R131415 |
1640-1660 |
1260-1620 |
T1650 R1310/1490/1550 |
|
Parameter |
FWDM |
|
|
Pass Band Wavelength Range (nm) |
1540~1560（customizable） |
|
|
Test wavelength (nm) |
1550 |
|
|
Reflection Band Wavelength Range (nm) |
1260~1360/1480-1500（customizable） |
|
|
Test wavelength (nm) |
1310/1490 |
|
|
Insertion loss (dB) |
Reflect Channel |
≤0.6 |
|
Pass Channel |
≤0.8 |
|
|
Pass Band Rippler (dB) |
<0.3 |
|
|
Isolation |
Pass Channel |
>30 |
|
Reflect Channel |
>15 |
|
|
Insertion Loss Temperature Sensitivity (dB/℃) |
<0.005 |
|
|
Polarization Dependent Loss (dB) |
<0.1 |
|
|
Polarization Mode Dispersion (ps) |
<0.1 |
|
|
Directivity (dB) |
>50 |
|
|
Return loss (dB) |
>45 |
|
|
Maximum Power Handling (mW) |
300 |
|
|
Operating Temperature (℃) |
-10~+75 |
|
|
Storage Temperature (℃) |
-40~+85 |
|
|
Package Dimension (mm) |
5.5*38 |
|
* Specifications may change without notice.
Above specification are for device without connector
