FWDM多模
Features
Wide Operating Wavelength Range
Low Insertion Loss
Ultra Flat Wide Passband
High Channel Isolation
High Stability and reliability
Epoxy-free on Optical Path
Applications
WDM System
MAN
CATV System
FTTH Tri-Play System

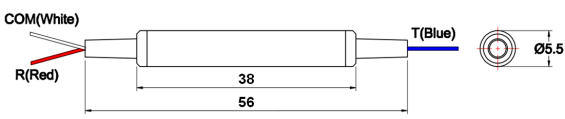

Dimension (Unit:mm)
Φ5.5×38 mm
Ordering Information ：HC－FWDM－A－B－C－D
|
A |
B |
C |
D |
|
Wavelength |
Fiber Type |
Fiber Length |
Connector |
|
T85R13=850 pass/1310 reflect T13/R85=1310 pass/850 reflect
|
1=Bare fiber 2=900um loose tube |
05=0.5m 10=1.0m 15=1.5m 20=2.0m
|
0=None FA=FC/APC FP=FC/PC SA=SC/APC SP=SC/PC LA=LC/APC LP=LC/PC S=Specify |
|
Parameter |
MM FWDM |
||
|
Pass Band Wavelength Range (nm) |
850±50 |
1310±50 |
|
|
Test wavelength (nm) |
850 |
1310 |
|
|
Reflection Band Wavelength Range (nm) |
1310±50 |
850±50 |
|
|
Test wavelength (nm) |
1310 |
850 |
|
|
Insertion loss (dB) |
Reflect Channel |
≤0.6 |
|
|
Pass Channel |
≤0.8 |
||
|
Isolation |
Pass Channel |
>30 |
|
|
Reflect Channel |
>15 |
||
|
Directivity (dB) |
>35 |
||
|
Return loss (dB) |
>30 |
||
|
Maximum Power Handling (mW) |
300 |
||
|
Operating Temperature (℃) |
-10~+75 |
||
|
Storage Temperature (℃) |
-40~+85 |
||
|
Package Dimension (mm) |
5.5*38 |
||
* Specifications may change without notice.
Above specification are for device without connector
