高功率磁光开关
Product Description
1x2 or 2x1 optical switch is an all solid-state device without any moving parts. The switchingof the optical light is realized by utilizing Faraday Effect.
Thisis achieved using a patent protected non-mechanical configuration with solid-state all-crystal design which eliminates the need for mechanical movement. The microsecond fiberopticswitch is designed to meet the most
Features
No moving parts, best durability
Ultra fast switching speed
Extremely stable latching mode
Low power consumption
Easy to route -all fibers on same side
Exceptional reliability and stability
Applications
Optical switching
High speed protection
System monitoring
Test & measurement
Fiber-optics sensing system

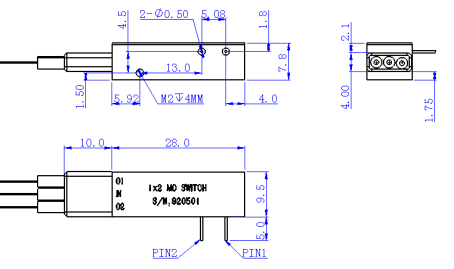

Mechanical Dimensions (Unit:mm)
Ordering Information: HC-HPUMS-A-B-C-D-E-F
|
A |
B |
C |
D |
E |
F |
|
Working Mode |
Switching Speed |
Operating Wavelength |
Fiber Tuber |
Fiber Length |
Connector Type |
|
1.Unbidirectional 2.Bidirectional |
1.200~400us 2.10~30us 3. Others |
1.CBand1525~1565 nm 2. L Band 1565-1615 nm 3.C & L Band 4.Others |
1.250μm fiber 2.900μm fiber 3.Others |
1.0.5 +/- 0.1 m 2. 1.0 +/- 0.1 m 3. Others |
0.No Connector 1.FC/UPC 2.FC/APC 3.SC/UPC 4.SC/APC 5.LC/PC 6.MU/PC 7.Others |
Specifications
|
Item |
Unit |
Parameters |
Notes |
|
|
Unbidirectional |
Bidirectional |
|||
|
Wavelength Range |
nm |
1525~1565 |
Other band optional |
|
|
Insertion Loss |
dB |
0.9(Typ.);1.2(Max.) |
1.0(Typ.); 1.5(Max.) |
|
|
PDL |
dB |
0.1 (Typ.);0.2(Max.) |
0.15(Typ.);0.3(Max.) |
|
|
Return Loss |
dB |
≥40(Typ.50) |
≥30(Typ.45) |
|
|
Cross-talk |
dB |
≥40(Typ.50) |
≥30(Typ.45) |
|
|
PMD |
ps |
0.2 |
0.3 |
|
|
Repeatability |
dB |
+/- 0.01 |
|
|
|
Durability |
cycles |
>100Billions |
|
|
|
Switching Speed |
μs |
Regular (200~400); Ultra-fast (10~30) |
Other speed optional |
|
|
Storage Temperature |
℃ |
-40~85 |
|
|
|
Operating Temperature |
℃ |
-5~70 |
|
|
|
Maximum Optical Power |
W |
≤5 |
High power optional |
|
|
Dimension( L×W×H ) |
mm |
28×9.5× 7.8 |
|
|
Note:
1.All the specifications are based on the devices without connectors, and guaranteed over wavelength, polarization and temperature.2.Specifications are subject to change without notice.
Electrical Specifications
|
Parameters |
Specifications |
Unit |
|
|
Regular |
Ultra-fast |
||
|
Switching Speed |
200~400 |
10~30 |
μs |
|
Switching Voltage (VCC) |
5 (+/-5%) |
6.0~7.0 |
V |
|
Switching Current |
< 100 |
< 350 |
mA |
|
Driving Mode |
Voltage or Pulse Driving |
Pulse Driving |
NA |
|
Pulse Width (typical) |
1000 |
200 |
μs |
|
Claim Frequency |
<800 |
< 3000 |
Hz |
Note:1.The recommended pulse width < 200us, if the pulse width of 50us is recommended to adjust the voltage to 7v.
2. When the switch is used for high-frequency switching, it is not recommended to use for a long time, if the need for a long time high-frequency switching, it is recommended to use a cooling device.
Unbidirectional Pin control signal corresponding to switching status table
|
Pin1 |
Pin2 |
The Optical Output Port |
|
1(Voltage =VCC) |
0(Voltage =GND) |
IN→OUT1 |
|
0(Voltage =GND) |
1(Voltage =VCC) |
IN→OUT2 |
|
1(Voltage =VCC) |
0(Voltage =GND) |
OUT2→IN |
|
0(Voltage =GND) |
1(Voltage =VCC) |
OUT1→IN |
Bidirectional Pin control signal corresponding to switching status table
|
Pin1 |
Pin2 |
The Optical Output Port |
|
1(Voltage =VCC) |
0(Voltage =GND) |
IN←→OUT1 |
|
0(Voltage =GND) |
1(Voltage =VCC) |
IN←→OUT2 |
|
1(Voltage =VCC) |
0(Voltage =GND) |
OUT2←→IN |
|
0(Voltage =GND) |
1(Voltage =VCC) |
OUT1←→IN |
