DFB蝶形激光器
Product description
The high quality MQW DFB laser diode with butterfly package can meet high power of optical transmitter system. Also, the built-in thermo-electric cooler (TEC) can make the laser diode work properly in various environments.
Features
Multi-Quantum Well (MQW) Distributed Feedback (DFB) lasers
Butterfly package
Built-in thermistor, and TEC
Operating Temperature –20~ +70℃
Single-mode/PM fiber pigtail

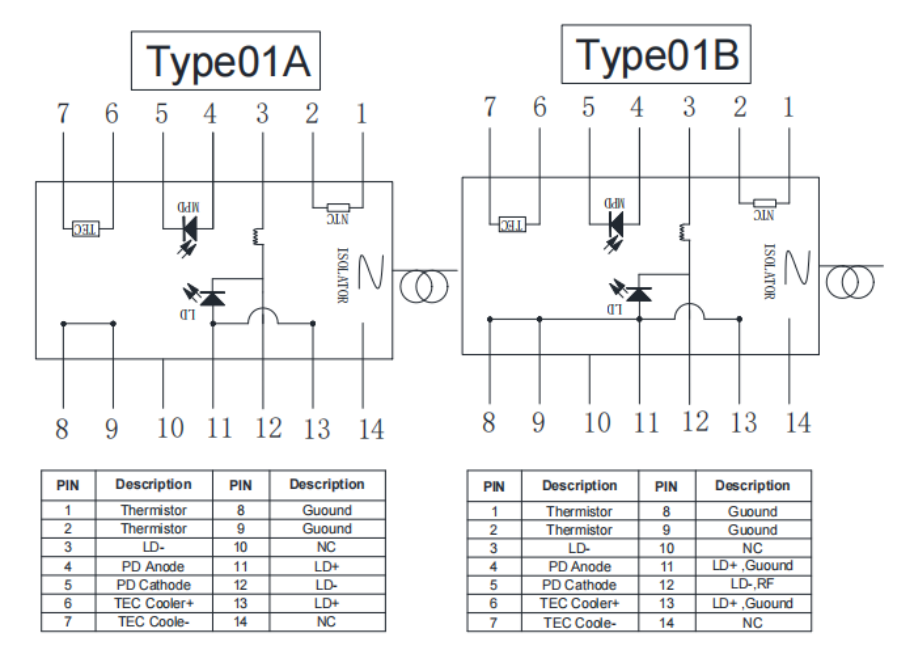

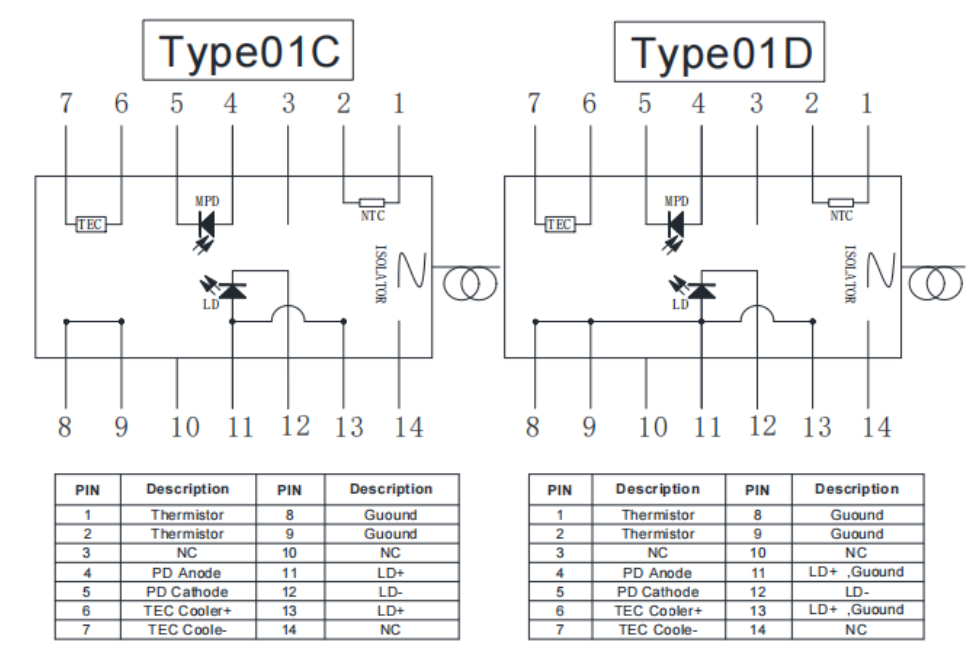

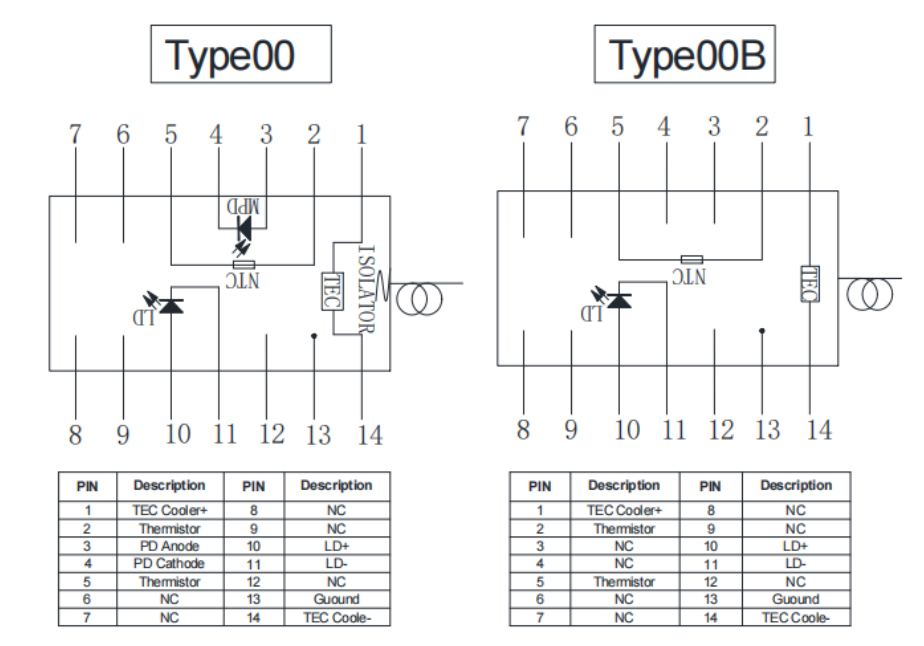

Dimensions and Pin Description
Dimensions are in millimeters. All dimensions are ±0. 1mm unless otherwise specified.

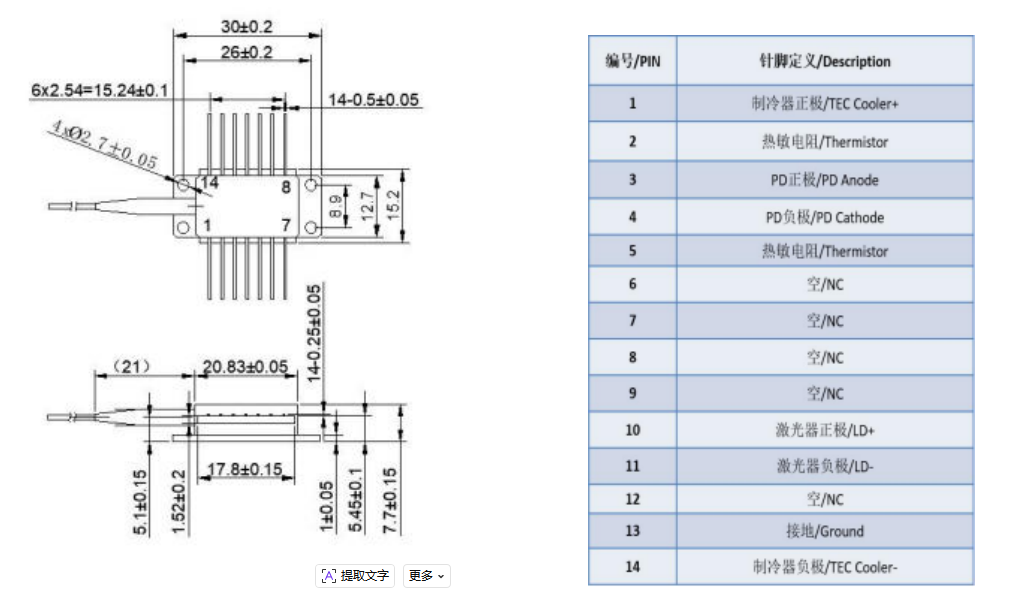

Type: 00

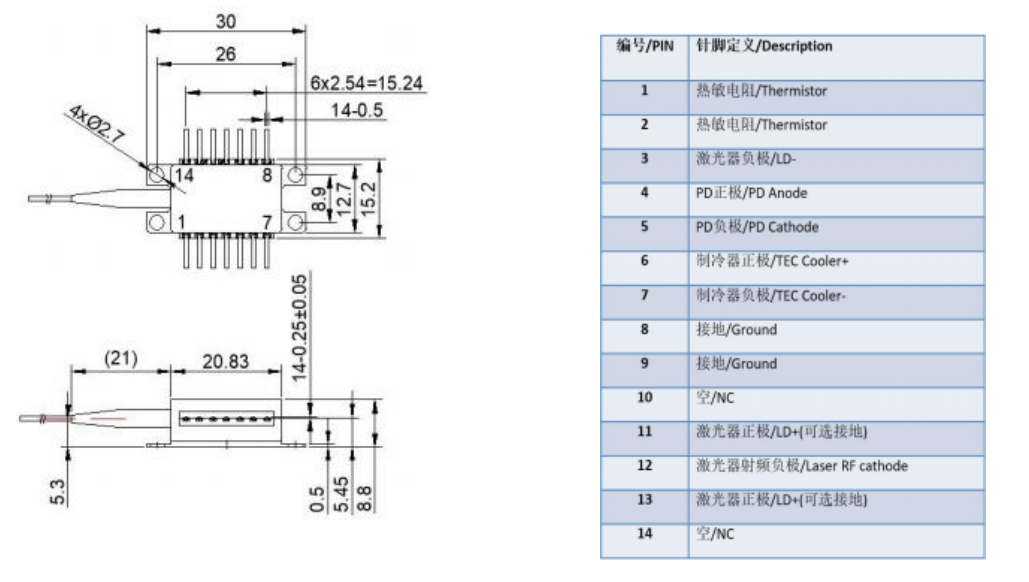

Type: 01
Order Information: HC -A-B-C-D-E-F-G-H
|
A |
B |
C |
D |
E |
F |
G |
H |
|
LD |
wavelength |
Output Power |
Fiber selection |
Connector |
PIN |
Line width |
IS |
|
LD=LD SLD=SLED NLD=Narrow line width PLD= Pulsed laser SOA=SOA TLD=Tunable laser … |
…nm 1310 1550 1560 ... 1742 … |
…mW 5 50 100 … |
BP=Type00 PM BS=Type00 SM CP=Type01 PM CS=Type01 SM CSB=Type01B SM CPB=Type01B PM CSC=Type01C SM CPC=Type01C PM CSD=Type01D SM CPD=Type01D PM … |
00=NO FA=FC/APC FU=FC/UPC SA=SC/APC … |
14 |
01 3K 02 5K 03 10K 04 100K 05 150K 06 200K 07 300K 08 500K 09 1M 10 3M 11 5M 12 10M |
0=NO 1=IS35 2=IS45 |
Note: The laser module are ESD-sensitive devices. Please insure that proper ESD handling procedures are followed.

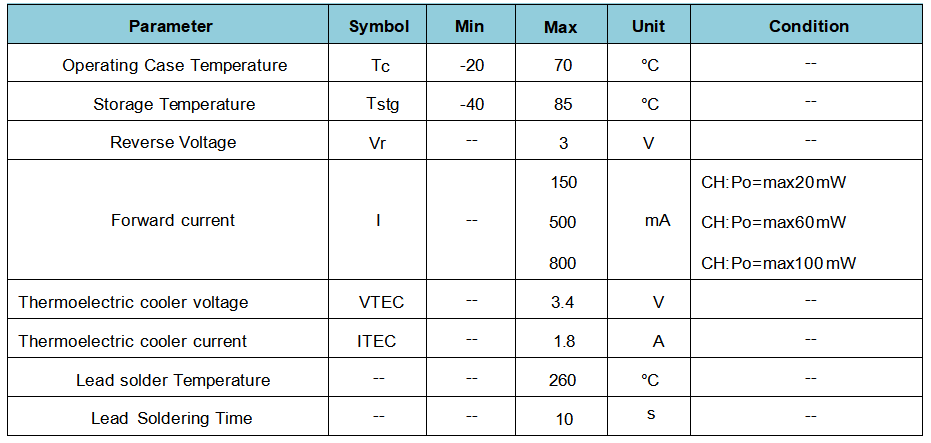

Absolute Maximum Ratings

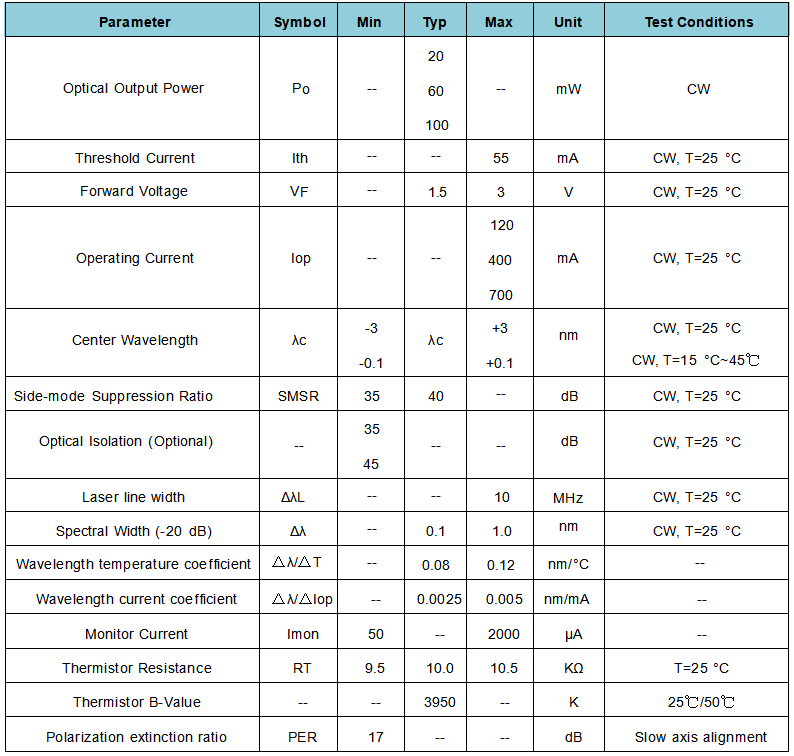

Optical/Electrical Characteristics (T=25℃, unless otherwise stated)
