小型光开关D2X2BA
Description
HC-OSW-D2X2BA Optical Switch, which is famous for its great performance, low insertion loss. It is an ideal Component for OADM，OXC，system monitoring and protection. With compact package, it could be easy to integrate into a high density optical communication system.
Feature
Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching
Application
R&D in Laboratory
System Monitoring
OADM
MAN
Optical Route

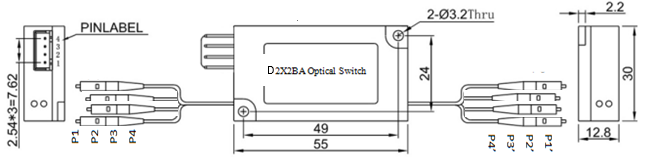

Dimension(mm)
Ordering Information: HC-OSW-D2×2BA-A-B-C-D-E-F
|
A |
B |
C |
D |
E |
F |
|
Test Wavelength |
Type |
Fiber Type |
Fiber Dimension |
Fiber Length |
Connector |
|
850：850nm |
3L：Latching |
5：50/125 |
025: Φ0.25mm |
05: 0.5m |
00: None |
|
1310：310nm |
3N：Non-latching |
6：62.5/125 |
09: Φ0.9mm |
10: 1.0m |
FP: FC/UPC |
|
1490：1490nm |
5L：Latching |
9：9/125 |
X：other |
15: 1.5m |
FA: FC/APC |
|
1550：1550nm |
5N：Non-latching |
X：other |
|
X：other |
SP: SC/UPC |
|
1625：1625nm |
|
|
|
|
SA: SC/APC |
|
13/15：1310/1550nm |
|
|
|
|
LP: LC/UPC |
|
X：other |
|
|
|
|
LA: LC/APC |
|
|
|
|
|
|
X：other |
|
Parameters |
Unit |
HC-OSW-D2×2BA |
|
Wavelength Range |
nm |
1260~1625 |
|
Operating Wavelength |
nm |
1310 / 1550 |
|
Insertion Loss |
dB |
1.2 |
|
Return Loss |
dB |
≥50 |
|
Crosstalk |
dB |
≥55 |
|
PDL |
dB |
≤0.05 |
|
WDL |
dB |
≤0.25 |
|
TDL |
dB |
≤0.25 |
|
Repeatability |
dB |
≤±0.02 |
|
Power Supply |
v |
3.0 or 5.0 |
|
Lifetime |
Times |
≥107 |
|
Swtich Time |
ms |
≤8 |
|
Transmission Power |
mW |
≤500 |
|
Operating Temperature |
℃ |
-20~+70 |
|
Storage Temperature |
℃ |
-40~+85 |
|
Weight |
g |
25 |
|
Dimension |
mm |
(L)55×(W)30×(H)12.8(±0.2mm) |

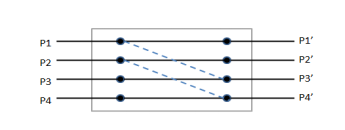

Pin Configurations
|
Type |
Pin（Optical Route） |
Electric Drive |
Status Sensor |
|
|
Pin 1 |
Pin 2 |
Pin3- Pin4 |
||
|
D2×2BA Non-latching |
Port 1 → Port 3,，Port 2 → Port 4, |
GND |
GND |
Open |
|
Port 1 → Port 1,，Port 2 → Port 2, Port 3 → Port 3,，Port 4 → Port 4, |
V+ |
GND |
Close |
|
|
Type |
Pin（Optical Route） |
Electric Drive |
|||
|
PIN1 |
PIN2 |
Pin3 |
Pin4 |
||
|
D2×2BA Latching |
Port 1 → Port 3,，Port 2 → Port 4, |
V+ |
GND |
-- |
-- |
|
Port 1 → Port 1,，Port 2 → Port 2, Port 3 → Port 3,，Port 4 → Port4, |
-- |
-- |
GND |
V+ |
|
Electrical Specification
|
Specifications |
Voltage |
Current |
Resistance |
|
5V Latching |
4.5~5.5 |
36~44mA |
125Ω |
|
5V Non-latching |
4.5~5.5 |
26~32mA |
175Ω |
|
3V Latching |
2.7~3.3 |
54~66mA |
50Ω |
|
3V Non-latching |
2.7~3.3 |
39~47mA |
70Ω |
