AWG模块 100G/62CH

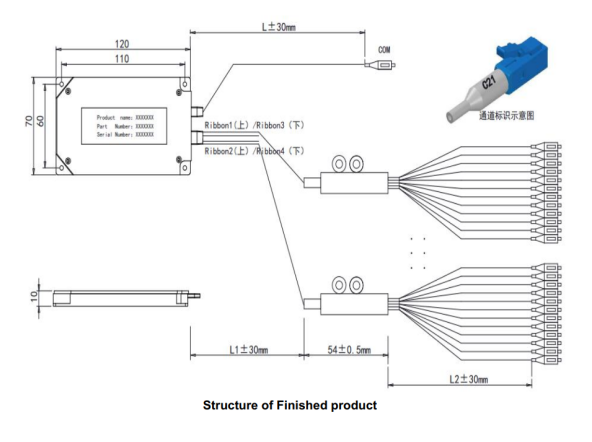

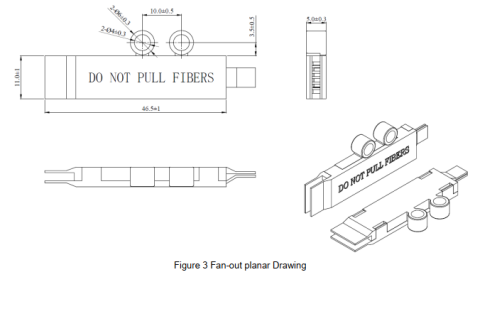

尺寸（单位：mm）
|
参数/Parameters |
|
规格/Specs |
Units 单位 |
|||
|
MIN |
Typ. |
MAX |
||||
|
通道数/Number of Channels |
|
62 |
CH |
|||
|
通道间隔/Number Channel Spacing |
|
100 |
GHz |
|||
|
中心波长/Center Wavelength |
|
L-band (1574.54~1626.655) |
nm |
|||
|
中心通道带宽/Center Wavelength Channel Passband |
|
±12.5 |
GHz |
|||
|
波长精度/Wavelength Stability |
Maximum of the absolute deviation of the 3 dB center wavelength from ITU grid over all channels. |
-7 |
|
7 |
GHz |
|
|
-1dB带宽/-1dB Channel Bandwidth |
1dB from min Insertion Loss, full width, average polarization. |
80 |
|
|
GHz |
|
|
-3dB带宽/-3dB Channel Bandwidth |
3 dB from min Insertion Loss, full width, average polarization |
105 |
|
|
GHz |
|
|
-20dB带宽/-20dB Channel Bandwidth |
20 dB from min Insertion Loss, full width, average polarization |
|
|
260 |
GHz |
|
|
ITU波长通道插损/ Optical Insertion Loss at ITU grid |
Maximum of the insertion loss across the ITU pass-band over all channels. |
|
|
6.2 |
dB |
|
|
平坦度/Ripple |
Maximum of the loss variance across the ITU pass-band over all channels |
|
|
0.5 |
dB |
|
|
相邻通道隔离度 Adjacent Channel Isolation |
Maximum insertion loss difference between the highest power channel and two adjacent channels overall operating conditions such as temperature, average polarization. |
7 |
|
|
dB |
|
|
非相邻通道隔离度 Non-Adjacent, Channel Isolation |
Maximum insertion loss difference between the highest power channel and non-adjacent channels overall operating conditions such as temperature, average polarization. |
20 |
|
|
dB |
|
|
总串扰/ Total Crosstalk |
Total cumulative average insertion loss difference between the highest power channel and all other channels overall operating conditions such as temperature, average polarization |
4 |
|
|
dB |
|
|
插损一致性 Insertion Loss Uniformity |
Maximum insertion loss variance across all channels |
|
|
1.5 |
dB |
|
|
回损/Optical Return loss |
|
40 |
|
|
dB |
|
|
偏振相关损耗 Polarization Dependent Loss in Clear Channel Band |
Maximum ratio of transmissions over all polarization states, over the ITU pass-band |
|
|
0.5 |
dB |
|
|
Operating Temperature/工作温度 |
|
-5 |
|
65 |
oC |
|
|
Operating Humidity/工作湿度 |
|
5 |
|
95 |
%RH |
|
|
Storage Temperature/存储温度 |
|
-40 |
|
+85 |
oC |
|
|
封装尺寸/Dimensions |
Module Box:L120 x W70 x H10 |
mm |
||||
|
光纤类型/Fiber Type |
900μm loose tube G657A2 |
|
||||
|
连接器类型/Connector Options |
LC/UPC |
|
||||
Channel Plan
|
Channel |
f(THz) |
λ(nm) |
Channel |
f(THz) |
λ(nm) |
|
1 |
184.3 |
1626.655 |
32 |
187.4 |
1599.746 |
|
2 |
184.4 |
1625.773 |
33 |
187.5 |
1598.893 |
|
3 |
184.5 |
1624.891 |
34 |
187.6 |
1598.041 |
|
4 |
184.6 |
1624.011 |
35 |
187.7 |
1597.189 |
|
5 |
184.7 |
1623.132 |
36 |
187.8 |
1596.339 |
|
6 |
184.8 |
1622.254 |
37 |
187.9 |
1595.489 |
|
7 |
184.9 |
1621.376 |
38 |
188 |
1594.641 |
|
8 |
185 |
1620.5 |
39 |
188.1 |
1593.793 |
|
9 |
185.1 |
1619.624 |
40 |
188.2 |
1592.946 |
|
10 |
185.2 |
1618.75 |
41 |
188.3 |
1592.1 |
|
11 |
185.3 |
1617.876 |
42 |
188.4 |
1591.255 |
|
12 |
185.4 |
1617.004 |
73 |
188.5 |
1590.411 |
|
13 |
185.5 |
1616.132 |
44 |
188.6 |
1589.568 |
|
14 |
185.6 |
1615.261 |
45 |
188.7 |
1588.725 |
|
15 |
185.7 |
1614.391 |
46 |
188.8 |
1587.884 |
|
16 |
185.8 |
1613.522 |
47 |
188.9 |
1587.043 |
|
17 |
185.9 |
1612.654 |
48 |
189 |
1586.203 |
|
18 |
186 |
1611.787 |
49 |
189.1 |
1585.365 |
|
19 |
186.1 |
1610.921 |
50 |
189.2 |
1584.527 |
|
20 |
186.2 |
1610.056 |
51 |
189.3 |
1583.69 |
|
21 |
186.3 |
1609.192 |
52 |
189.4 |
1582.854 |
|
22 |
186.4 |
1608.329 |
53 |
189.5 |
1582.018 |
|
23 |
186.5 |
1607.466 |
54 |
189.6 |
1581.184 |
|
24 |
186.6 |
1606.605 |
55 |
189.7 |
1580.35 |
|
25 |
186.7 |
1605.744 |
56 |
189.8 |
1579.518 |
|
26 |
186.8 |
1604.885 |
57 |
189.9 |
1578.686 |
|
27 |
186.9 |
1604.026 |
58 |
190 |
1577.855 |
|
28 |
187 |
1603.168 |
59 |
190.1 |
1577.025 |
|
29 |
187.1 |
1602.311 |
60 |
190.2 |
1576.196 |
|
30 |
187.2 |
1601.455 |
61 |
190.3 |
1575.368 |
|
31 |
187.3 |
1600.6 |
62 |
190.4 |
1574.54 |
