AAWG模块 50G/96CH
Product Description
The Arrayed Waveguide Grating (AWG) is a cost-effective, high-performance DWDM Mux/Demux device operating on 100GHz channel spacing in the C and L band ITU grid, without any electrical power needed.
Etern AAWG offers low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package.
The products are Telcordia GR-1221-CORE and GR-1209-CORE qualified, and RoHS complaint.
Function
Note:
1, Channel number, Started channel can be customized.
2, Optical Function above is standard type, it can integrate Monitor Port, 1310 Port, Express Port per demand.
Rack Type

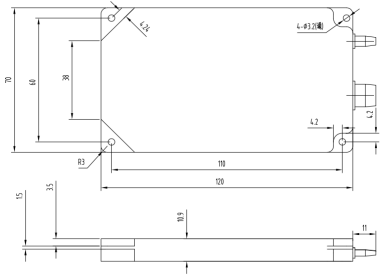

Mechanical Drawings (Unit: mm)

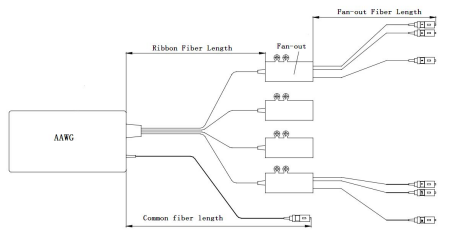

Fiber Length Definition

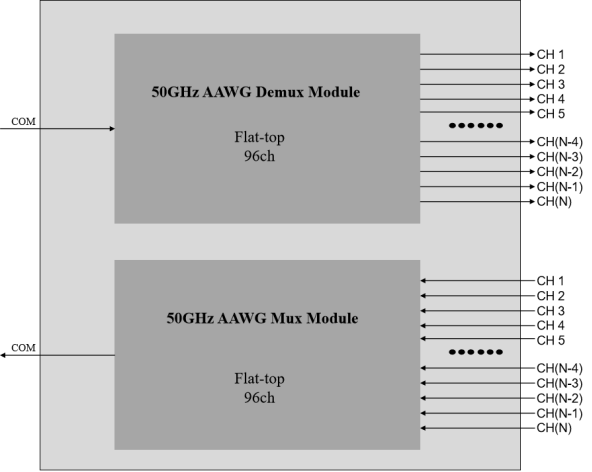

2U Rack Mount
(Supporting 96ch Mux&Demux AAWG)
Ordering Information: HC－AAWG - 5F96 - C13.5 - A - B
|
Manufacturing PN |
Configuration |
Dimension(mm) |
Notes |
|
A |
B |
||
|
AAWG-5F96-C13.5-A-B |
M=Mux D=Demux |
M/D：120 x 70 x 10.9 2U：491 x 226 x 88 |
AAWG, Flat-top, 50GHz Spacing, 96ch, C13.5-C61 |
Table 1 Optical Specifications
|
Parameters |
Unit |
Value |
|
|
Channel Number |
|
96 |
|
|
Channel Spacing |
GHz |
50 |
|
|
Center Wavelength |
nm |
1528.77 ~ 1566.72 |
|
|
Channel Frequency |
THz |
191.35 ~196.10 |
|
|
Reference Passband |
GHz |
||
|
Wavelength Accuracy |
pm |
±50 |
|
|
Insertion Loss |
dB |
≤ 6.0 |
|
|
Insertion Loss Uniformity |
dB |
≤ 1.5 |
|
|
Passband Ripple |
dB |
≤ 0.5 |
|
|
Bandwidth |
@1dB |
nm |
≥ 0.2 |
|
@3dB |
≥ 0.26 |
||
|
@20dB |
≤0.7 |
||
|
@30dB |
≤0.95 |
||
|
Isolation |
Adjacent Channels |
dB |
≥25 |
|
Non-adjacent Channels |
≥30 |
||
|
Total crosstalk |
dB |
≥21 |
|
|
Directivity |
dB |
≥45 |
|
|
PDL |
dB |
≤0.5 |
|
|
PMD |
ps |
≤0.5 |
|
|
Return Loss |
dB |
≥45 |
|
|
Chromatic Dispersion |
ps/nm |
±20 |
|
|
Continuous optical power |
mw |
≤500 |
|
|
Operating Temperature |
℃ |
-5 to +65 |
|
|
Storage Temperature |
℃ |
-40 to +85 |
|
|
Relative Humidity |
% |
5 to 90 |
|
Note：Specified with connectors at room temperature.
Table 2 Channel List
|
Channel# |
Frequency(GHz) |
Wavelength(nm) |
|
C13.5 |
191350 |
1566.72 |
|
C14 |
191400 |
1566.31 |
|
C14.5 |
191450 |
1565.9 |
|
C15 |
191500 |
1565.5 |
|
C15.5 |
191550 |
1565.09 |
|
C16 |
191600 |
1564.68 |
|
C16.5 |
191650 |
1564.27 |
|
C17 |
191700 |
1563.86 |
|
C17.5 |
191750 |
1563.45 |
|
C18 |
191800 |
1563.05 |
|
C18.5 |
191850 |
1562.64 |
|
C19 |
191900 |
1562.23 |
|
C19.5 |
191950 |
1561.83 |
|
C20 |
192000 |
1561.42 |
|
C20.5 |
192050 |
1561.01 |
|
C21 |
192100 |
1560.61 |
|
C21.5 |
192150 |
1560.2 |
|
C22 |
192200 |
1559.79 |
|
C22.5 |
192250 |
1559.39 |
|
C23 |
192300 |
1558.98 |
|
C23.5 |
192350 |
1558.58 |
|
C24 |
192400 |
1558.17 |
|
C24.5 |
192450 |
1557.77 |
|
C25 |
192500 |
1557.36 |
|
C25.5 |
192550 |
1556.96 |
|
C26 |
192600 |
1556.55 |
|
C26.5 |
192650 |
1556.15 |
|
C27 |
192700 |
1555.74 |
|
C27.5 |
192750 |
1555.34 |
|
C28 |
192800 |
1554.94 |
|
C28.5 |
192850 |
1554.54 |
|
C29 |
192900 |
1554.13 |
|
C29.5 |
192950 |
1553.73 |
|
C30 |
193000 |
1553.33 |
|
C30.5 |
193050 |
1552.93 |
|
C31 |
193100 |
1552.52 |
|
C31.5 |
193150 |
1552.12 |
|
C32 |
193200 |
1551.72 |
|
C32.5 |
193250 |
1551.32 |
|
C33 |
193300 |
1550.92 |
|
C33.5 |
193350 |
1550.52 |
|
C34 |
193400 |
1550.12 |
|
C34.5 |
193450 |
1549.72 |
|
C35 |
193500 |
1549.32 |
|
C35.5 |
193550 |
1548.91 |
|
C36 |
193600 |
1548.51 |
|
C36.5 |
193650 |
1548.11 |
|
C37 |
193700 |
1547.72 |
|
C37.5 |
193750 |
1547.32 |
|
C38 |
193800 |
1546.92 |
|
C38.5 |
193850 |
1546.52 |
|
C39 |
193900 |
1546.12 |
|
C39.5 |
193950 |
1545.72 |
|
C40 |
194000 |
1545.32 |
|
C40.5 |
194050 |
1544.92 |
|
C41 |
194100 |
1544.53 |
|
C41.5 |
194150 |
1544.13 |
|
C42 |
194200 |
1543.73 |
|
C42.5 |
194250 |
1543.33 |
|
C43 |
194300 |
1542.93 |
|
C43.5 |
194350 |
1542.54 |
|
C44 |
194400 |
1542.14 |
|
C44.5 |
194450 |
1541.74 |
|
C45 |
194500 |
1541.34 |
|
C45.5 |
194550 |
1540.95 |
|
C46 |
194600 |
1540.56 |
|
C46.5 |
194650 |
1540.16 |
|
C47 |
194700 |
1539.77 |
|
C47.5 |
194750 |
1539.37 |
|
C48 |
194800 |
1538.98 |
|
C48.5 |
194850 |
1538.58 |
|
C49 |
194900 |
1538.19 |
|
C49.5 |
194950 |
1537.79 |
|
C50 |
195000 |
1537.4 |
|
C50.5 |
195050 |
1537.01 |
|
C51 |
195100 |
1536.61 |
|
C51.5 |
195150 |
1536.22 |
|
C52 |
195200 |
1535.82 |
|
C52.5 |
195250 |
1535.43 |
|
C53 |
195300 |
1535.04 |
|
C53.5 |
195350 |
1534.64 |
|
C54 |
195400 |
1534.25 |
|
C54.5 |
195450 |
1533.86 |
|
C55 |
195500 |
1533.47 |
|
C55.5 |
195550 |
1533.07 |
|
C56 |
195600 |
1532.68 |
|
C56.5 |
195650 |
1532.29 |
|
C57 |
195700 |
1531.9 |
|
C57.5 |
195750 |
1531.51 |
|
C58 |
195800 |
1531.12 |
|
C58.5 |
195850 |
1530.72 |
|
C59 |
195900 |
1530.33 |
|
C59.5 |
195950 |
1529.94 |
|
C60 |
196000 |
1529.55 |
|
C60.5 |
196050 |
1529.16 |
|
C61 |
196100 |
1528.77 |
PIGTAIL AND CONNECTOR
Table 3 Pigtail and connector type/length
|
Parameter |
Specifications |
Unit |
|
|
Fiber Type |
SMF28e, with 0.9mm loose tube fiber |
|
|
|
Fiber Length |
Common Fiber |
500±50 or customized |
mm |
|
Ribbon Fiber |
500±50 or customized |
mm |
|
|
Fan-out |
500±50 or customized |
mm |
|
|
Optical Adaptors (All port) |
LC/UPC or customized |
|
|
