矩阵光开关MEMS 48×48模块
MEMS N×N，可定制，MEMS 48X48矩阵光路模块

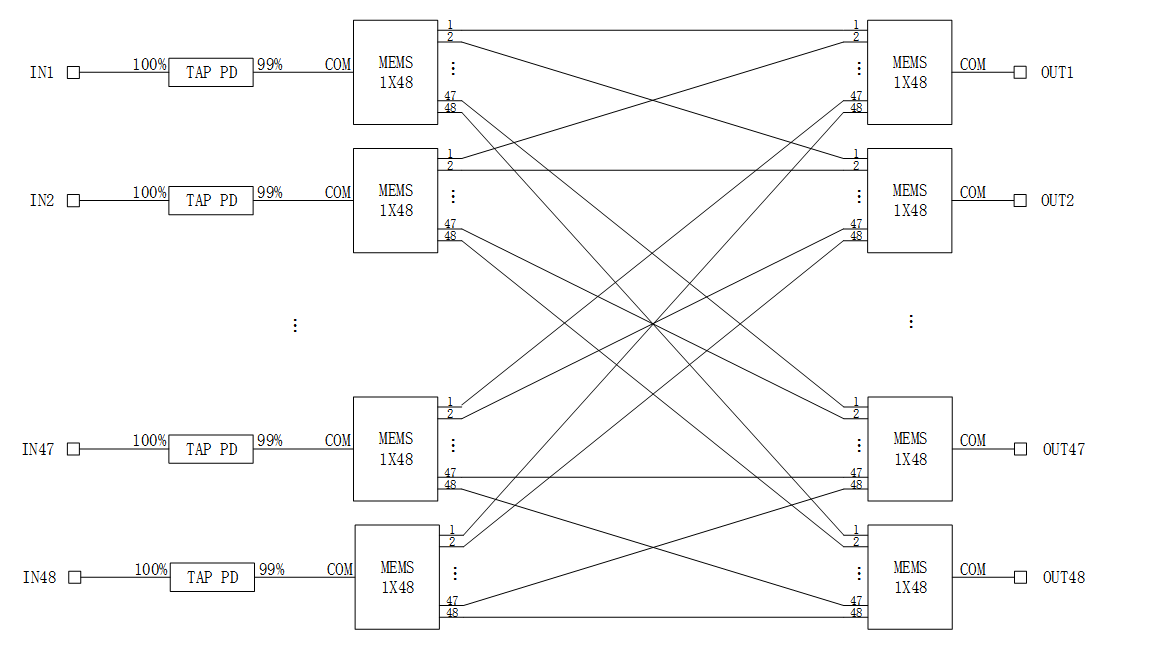

模块内部光路示意图

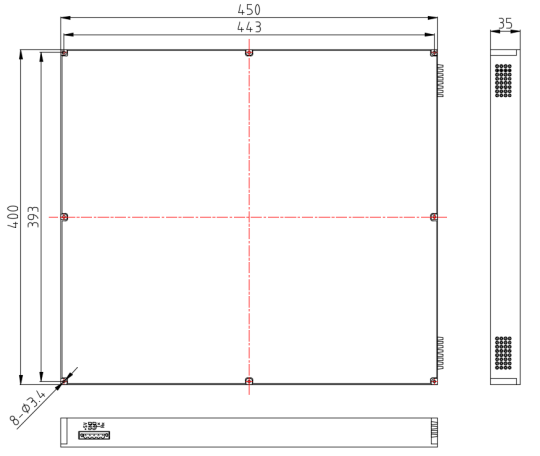

结构示意
性能参数
|
型 号 |
MEMS-48X48 |
|
Test Wavelength |
1310/1550nm |
|
Insertion loss |
≤4.0dB（包括连接器） |
|
Return loss |
＜45 dB |
|
Switch cross talk |
＜45 dB |
|
Polarization dependent loss |
＜0.2dB |
|
Wavelength dependent loss |
＜1.5dB |
|
Switching time |
＜30ms |
|
Repeatability |
＜0.1dB |
|
Maximum Optical Input Power |
＜23dBm |
|
PD report accuracy |
±0.5dB (at -50 to 23 dBm) |
|
Fiber type |
Corning SMF-28, 250μm with 900μm loose tube |
|
Fiber length |
0.5m±0.01m |
|
Connectors |
FC/PC |
|
Supervision interface |
RS232 |
|
Operating voltage |
5V |
|
Power Consumption |
＜25W |
|
Operating Temperature |
-10 ~ 70 °C |
|
Storage Temperature |
-40 ~ 80 °C |
|
Package Dimension |
450×400×35mm |
管脚定义
|
Pin# |
Signal name |
Type |
电平 |
Description |
|
1 |
+5V |
I |
+5V |
+5V 5A电源 |
|
2 |
GND |
N |
N |
工作地 |
|
3 |
GND |
N |
N |
工作地 |
|
4 |
RS232-Tx |
O |
RS232 |
Transmit Data |
|
5 |
RS232-Rx |
I |
RS232 |
Receive Data |
