DWDM 器件
Features
Low insertion loss
Low PDL
High channel isolation
Excellent environmental reliability
Applications
WDM System
MAN
CATV System

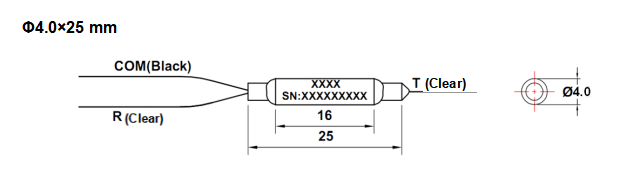

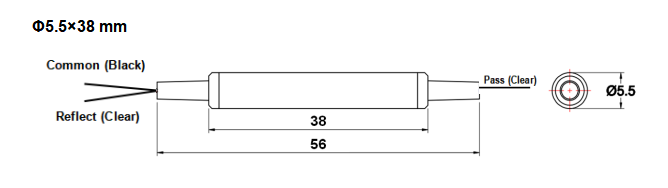

Dimension (Unit:mm)
Ordering Information ： HC-DWDM-A-B-C-D-E-F
|
A |
B |
C |
D |
E |
F |
|
Channel Spacing |
Channel Frequency Wavelength |
Tube Type |
Fiber Length (Include connector) |
Connector |
Dimension |
|
50G 100G 200G
|
C20=1561.42nm 按常用波长表选择
X: Others
|
25:250um 90:900um X: Others
|
05: 0.5m±0.05m 10: 1.0m±0.05m 15: 1.5m±0.05m X: Others |
00:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC LP: LC/PC LA: LC/APC X: Others |
5538: Φ5.5×38mm 4025: Φ4.0×25mm X: Others |
常用波长表（其它波长可确认定制）
|
C20 |
1561.42 |
|
C41 |
1544.53 |
|
C21 |
1560.61 |
C42 |
1543.73 |
|
|
C22 |
1559.79 |
C43 |
1542.94 |
|
|
C23 |
1558.98 |
C44 |
1542.14 |
|
|
C24 |
1558.17 |
C45 |
1541.35 |
|
|
C25 |
1557.36 |
C46 |
1540.56 |
|
|
C26 |
1556.55 |
C47 |
1539.77 |
|
|
C27 |
1555.75 |
C48 |
1538.98 |
|
|
C28 |
1554.94 |
C49 |
1538.19 |
|
|
C29 |
1554.13 |
C50 |
1537.40 |
|
|
C30 |
1553.33 |
C51 |
1536.61 |
|
|
C31 |
1552.52 |
C52 |
1535.82 |
|
|
C32 |
1551.72 |
C53 |
1535.04 |
|
|
C33 |
1550.92 |
C54 |
1534.25 |
|
|
C34 |
1550.12 |
C55 |
1533.47 |
|
|
C35 |
1549.32 |
C56 |
1532.68 |
|
|
C36 |
1548.51 |
C57 |
1531.90 |
|
|
C37 |
1547.72 |
C58 |
1531.12 |
|
|
C38 |
1546.92 |
C59 |
1530.33 |
|
|
C39 |
1546.12 |
C60 |
1529.55 |
|
|
C40 |
1545.32 |
C61 |
1528.77 |
|
Parameters |
Unit |
HC-DWDM |
|||
|
Wavelength Range |
nm |
1525~ 1570 |
|||
|
Channel Center Wavelength |
nm |
C13-H60 |
|||
|
Channel Spacing |
nm |
50G |
100G |
200G |
|
|
Channel Passband |
nm |
>0.11 |
>0.22 |
>0.5 |
|
|
Insertion Loss |
dB |
Pass Channel: ≤1.2 |
|||
|
Reflect Channel: ≤0.8 |
|||||
|
Pass Channel Isolation |
dB |
≥ 20 |
≥ 30 |
≥ 30 |
|
|
Reflect Channel Isolation |
dB |
≥ 12 |
|||
|
Pass Channel PDL |
dB |
≤ 0.1 |
|||
|
Reflect Channel PDL |
dB |
≤ 0.1 |
|||
|
Wavelength thermal stability |
nm/℃ |
≤ 0.003 |
|||
|
Insertion loss thermal stability |
dB/℃ |
≤ 0.005 |
|||
|
Return loss |
dB |
≥ 45 |
|||
|
Optical Power |
mW |
≤ 500 |
|||
|
Operating Temperature |
℃ |
-5 ~ +75 |
|||
|
Storage Temperature |
℃ |
-40 ~ +85 |
|||
|
Relative Humidity |
% |
5 ~ 95 |
|||
|
Dimension |
mm |
Φ5.5×38 |
Φ4.0×25 |
||
|
Note: 1. Customization is available. |
|||||
