矩阵光开关DCM 4×8模块

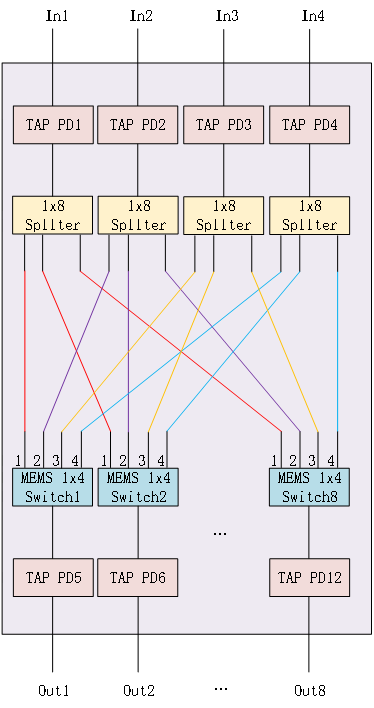

Block Diagram
Dimension(mm)
Fiber Length and Boot Length definition
Note: including boot and connector length.
|
Product Number |
MEMS-4X8-MCS-M |
|
Fiber Type |
SM（9/125） |
|
Operational Wavelength Range |
C+L Band (1530nm-1565nm & 1565nm-1625nm) |
|
Test wavelength |
1550nm |
|
Insertion Loss |
≤11.6dB |
|
Return Loss |
≥45 dB |
|
Crosstalk |
≥50 dB |
|
Repeatability |
≤±0.1dB |
|
Switching Time |
≤15ms |
|
Durability |
≥109 cycles |
|
Connector Type |
LC/UPC |
|
Pigtail Length |
0.5m |
|
Optical Power |
≤500 mW |
|
Power Supply |
DC5V±10% / ≤1A |
|
Working Temperature |
-40 ~ 70 °C |
|
Storage Temperature |
-40 ~ 85 °C |
|
Packaging Dimensions |
120(L) x 80(W) x 25(H) ±0.2mm |
Electrical-pins definition
|
PIN |
definition |
Signal |
Function |
|
1 |
NC |
|
No physical internal connection |
|
2 |
NC |
|
No physical internal connection |
|
3 |
VCC |
Power |
Power supply, 5V/1A |
|
4 |
NC |
|
No physical internal connection |
|
5 |
NC |
|
No physical internal connection |
|
6 |
GND |
Power |
GND |
|
7 |
NC |
|
No physical internal connection |
|
8 |
NC |
|
No physical internal connection |
|
9 |
TXD |
Output |
Transmit Data（Rs232） |
|
10 |
RXD |
Input |
Receive Data（Rs232） |
|
11 |
NC |
|
No physical internal connection |
|
12 |
NC |
|
No physical internal connection |
|
13 |
NC |
|
No physical internal connection |
|
14 |
NC |
|
No physical internal connection |
|
15 |
NC |
|
No physical internal connection |
|
16 |
NC |
|
No physical internal connection |
Note: the electrical interface of the module uses Molex 87833-1620, and the customer's connector is recommended to use Molex 87568-1694.
Factory default configuration
|
Item |
Factory default configuration |
Note |
|
Serial baud rate |
115200 |
8 data bits, 1 stop bit, no parity |
|
Working channel |
In1→Out1、In2→Out2 In3→Out3、In4→Out4 |
Keep the light path state when saving the configuration after powering down and then on the equipment |
