DWDM OADM 模块 100G/200G
Features
Low Insertion Loss
ITU channel spacing
Wide pass band
High Channel Isolation
High Stability and reliability
Epoxy-free on Optical Path
Applications
Channel Add/Drop
DWDM Network
Wavlength Routing
Fiber Optical Amplifier
CATV fiberoptic System
Dimension (Unit:mm)

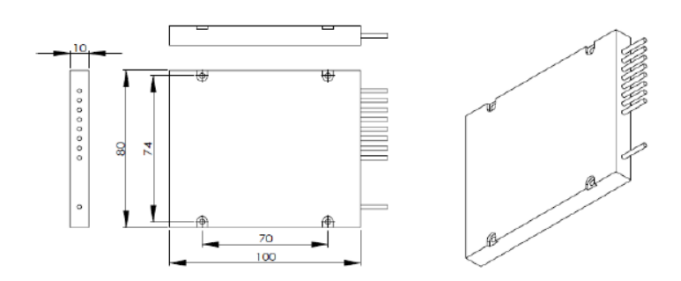

100×80×10mm

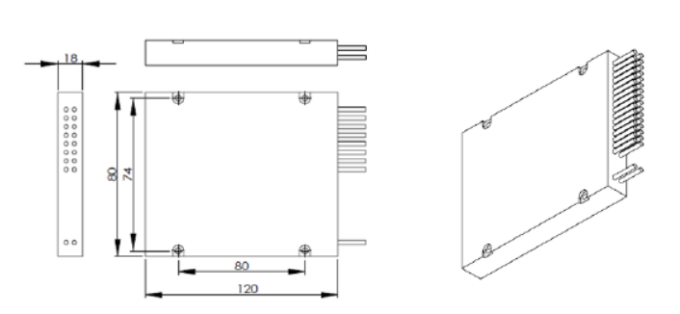

120×80×18mm
140×115×18mm
Ordering Information HC－DWDM－A－B－C－D－E－F
|
A |
B |
C |
D |
E |
F |
|
Number of Channels |
Configuration |
1st Channel |
Fiber Type |
Fiber Length |
In/Out Connector |
|
04:4 Channel 08:8 Channel
|
1:4×4Add and Drop 2:8×8Add and Drop |
21:Ch21 …… 34:Ch34 …… 50:Ch50 …… 61:Ch61 |
1:250um Bare fiber 2:900um loose tube 3:2mm Cable 4:3mm Cable |
1:1m 2:2m S:Specify |
0:None 1:FC/APC 2:FC/PC 3:SC/APC 4:SC/UPC 5:ST 6:LC S:Specify |
|
Parameter |
4 Channel |
8 Channel |
||||
|
Add |
Drop |
Add |
Drop |
|||
|
Channel Wavelength (nm) |
ITU Grid |
|||||
|
Channel Spacing (GHz) |
100/200 |
|||||
|
Channel Passband (@-0.5dB bandwidth (nm) |
>0.22(100G)/>0.5(200G) |
|||||
|
Insertion Loss (dB) |
In---Drop@drop |
2.0 |
3.2 |
|||
|
Add---Out@add |
2.0 |
3.2 |
||||
|
In---Out@other |
2.5 |
5.0 |
||||
|
Isolation (dB) |
Adjacent |
N/A |
>30 |
N/A |
>30 |
|
|
Non-adjacent |
N/A |
>40 |
N/A |
>40 |
||
|
Add/Drop Channel Ripple（dB） |
<0.3 |
|||||
|
Inertion Loss Temperature Sensitivity(dB/℃) |
<0.005 |
|||||
|
Wavelength Temperature Shifting(nm/℃) |
<0.002 |
|||||
|
Polarization Dependent Loss（dB） |
<0.1 |
|||||
|
Polarization Mode Dispersion（ps） |
<0.1 |
|||||
|
Directivity（dB） |
>50 |
|||||
|
Return Loss（dB） |
>45 |
|||||
|
Maximum Power Handling（mW） |
300 |
|||||
|
Opterating Temperature(℃) |
-10~+75 |
|||||
|
Storage Temperature(℃) |
-40~+85 |
|||||
|
Package dimension (mm) |
L100×W80×H10 |
|||||
|
L120×W80×H18 |
||||||
|
L141×W115×H18 |
||||||
* 1、Above specifications are for devices without connector.2、Specifications may change without notice.
