3.125Gb/s CWDM Single-mode SFP Transceiver
Features
Low power dissipation
Up to 3.125Gb/s data links
Single +3.3V power supply
Up to 40km on 9/125µm SMF
Hot-pluggable SFP footprint
Metal enclosure, for lower EMI
RoHS compliant and lead-free
DFB laser transmitter and PIN receiver
Support Digital Diagnostic Monitoring interface
Duplex LC/UPC type pluggable optical interface
Compliant with SFF-8472
Case operating temperature
Commercial: 0°C to +70°C
Industrial: -40°C to +85°C
Application
Gigabit Ethernet
Other Optical Links
Router/Server Interface
Switch to Switch Interface
Switched Backplane Applications
Electric Pin Descriptions
Figure2. Pin out of Connector Block on Host Board
|
Pin |
Symbol |
Name/Description |
NOTE |
|
1 |
VEET |
Transmitter Ground (Common with Receiver Ground) |
1 |
|
2 |
TFAULT |
Transmitter Fault. |
|
|
3 |
TDIS |
Transmitter Disable. Laser output disabled on high or open. |
2 |
|
4 |
MOD_DEF(2) |
Module Definition 2. Data line for Serial ID. |
3 |
|
5 |
MOD_DEF(1) |
Module Definition 1. Clock line for Serial ID. |
3 |
|
6 |
MOD_DEF(0) |
Module Definition 0. Grounded within the module. |
3 |
|
7 |
Rate Select |
No connection required |
4 |
|
8 |
LOS |
Loss of Signal indication. Logic 0 indicates normal operation. |
5 |
|
9 |
VEER |
Receiver Ground (Common with Transmitter Ground) |
1 |
|
10 |
VEER |
Receiver Ground (Common with Transmitter Ground) |
1 |
|
11 |
VEER |
Receiver Ground (Common with Transmitter Ground) |
1 |
|
12 |
RD- |
Receiver Inverted DATA out. AC Coupled |
|
|
13 |
RD+ |
Receiver Non-inverted DATA out. AC Coupled |
|
|
14 |
VEER |
Receiver Ground (Common with Transmitter Ground) |
1 |
|
15 |
VCCR |
Receiver Power Supply |
|
|
16 |
VCCT |
Transmitter Power Supply |
|
|
17 |
VEET |
Transmitter Ground (Common with Receiver Ground) |
1 |
|
18 |
TD+ |
Transmitter Non-Inverted DATA in. AC Coupled. |
|
|
19 |
TD- |
Transmitter Inverted DATA in. AC Coupled. |
|
|
20 |
VEET |
Transmitter Ground (Common with Receiver Ground) |
1 |
Notes:
1. Circuit ground is internally isolated from chassis ground.
2. Laser output disabled on TDIS >2.0V or open, enabled on TDIS <0.8V.
3. Should be pulled up with 4.7k - 10kohms on host board to a voltage between 2.0V and 3.6V.MOD_DEF (0) pulls line low to indicate module is plugged in.
4. This is an optional input used to control the receiver bandwidth for compatibility with multiple data rates (most likely Fiber Channel 1x and 2x Rates).If implemented, the input will be internally pulled down with > 30kΩ resistor. The input states are:
□ Low (0 – 0.8V): Reduced Bandwidth
□ (>0.8, < 2.0V):Undefined
□ High (2.0 – 3.465V): Full Bandwidth
□ Open: Reduced Bandwidth
5. LOS is open collector output should be pulled up with 4.7k - 10kohms on host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Storage Temperature |
Ts |
-40 |
85 |
ºC |
||
|
Relative Humidity |
RH |
5 |
95 |
% |
||
|
Power Supply Voltage |
VCC |
-0.5 |
4 |
V |
||
|
Signal Input Voltage |
-0.3 |
Vcc+0.3 |
V |
|||
|
Receiver Damage Threshold |
5 |
dBm |
Recommended Operating Conditions
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Case Operating Temperature |
Tcase |
0 |
70 |
ºC |
Commercial |
|
|
-40 |
85 |
ºC |
Industrial |
|||
|
Power Supply Voltage |
VCC |
3.13 |
3.3 |
3.47 |
V |
|
|
Power Supply Current |
ICC |
300 |
mA |
|||
|
Power Supply Noise Rejection |
100 |
mVp-p |
100Hz to 1MHz |
|||
|
Data Rate |
3125/3125 |
Mbps |
TX Rate/RX Rate |
|||
|
Transmission Distance |
40 |
KM |
||||
|
Coupled Fiber |
Single mode fiber |
9/125um SMF |
||||
Specification of Transmitter
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Average Output Power |
POUT |
-2 |
3 |
dBm |
Note (1) |
|
|
Extinction Ratio |
ER |
8.2 |
dB |
|||
|
Center Wavelength |
λC |
(1XX0)-10 |
1XX0 |
(1XX0)+10 |
nm |
DFBLaser Note (2) Not(2) |
|
Side Mode Suppression Ratio |
SMSR |
30 |
dB |
|||
|
Spectrum Bandwidth(-20dB) |
σ |
1 |
nm |
|||
|
Transmitter OFF Output Power |
POff |
-45 |
dBm |
|||
|
Differential Line Input Impedance |
RIN |
90 |
100 |
110 |
Ohm |
|
|
Output Eye Mask |
Compliant with G.957 (class 1 laser safety) |
Note (3) |
||||
Note:
(1) : Measure at 2^23-1 NRZ PRBS pattern
(2) :“XX” is: 27,29,31,33,35,37,39,41,43,45,47,49,51,53,55,57,59 and 61
(3) : Transmitter eye mask definition

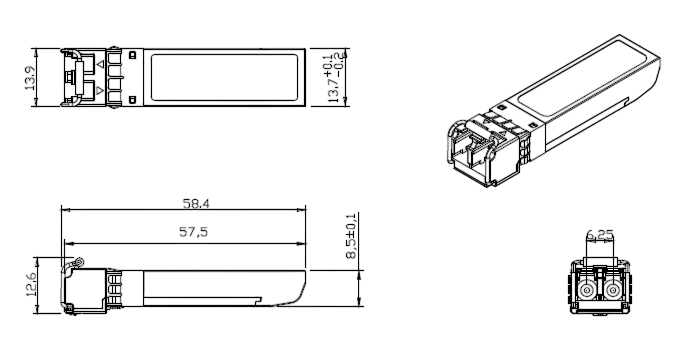

Mechanical Specifications (Unit: mm)
![5_NG]KL@SD[$PEVN}5M2)8P.png](/ru/storage/uploads/20250711/a45a56f175480f0edf1530e605fc0650.png "5_NG]KL@SD[$PEVN}5M2)8P.png")
![TPEA)R@0K)@ZW4(~0(N%]MQ.png](/ru/storage/uploads/20250711/cd1340d008588d57e7c74412bf9c5da2.png "TPEA)R@0K)@ZW4(~0(N%]MQ.png")
Ordering Information
|
Product part Number |
Data Rate (Mbps) |
Media |
Transmission Distance(km) |
Temperature Range （Tcase）（℃） |
|
|
HC--SF-CXX30-40D |
3125 |
Single mode fiber |
40 |
0~70 |
commercial |
|
HC-SF-CXX30-40DA |
3125 |
Single mode fiber |
40 |
-40~85 |
industrial |
|
Wavelength |
xx |
Clasp Color Code |
Wavelength |
xx |
Clasp Color Code |
|
1270 nm |
27 |
Gray |
1450 nm |
45 |
Brown |
|
1290 nm |
29 |
Gray |
1470 nm |
47 |
Gray |
|
1310 nm |
31 |
Gray |
1490 nm |
49 |
Purple |
|
1330 nm |
33 |
Purple |
1510 nm |
51 |
Blue |
|
1350 nm |
35 |
Blue |
1530 nm |
53 |
Green |
|
1370 nm |
37 |
Green |
1550 nm |
55 |
Yellow |
|
1390 nm |
39 |
Yellow |
1570 nm |
57 |
Orange |
|
1410 nm |
41 |
Orange |
1590 nm |
59 |
Red |
|
1430 nm |
43 |
Red |
1610 nm |
61 |
Brown |
