Волоконно-оптическая соединительная линия
Introduce
Fiber optic patch cord is used for linking the equipment and components in fiber optic network, is comprised of a polymer outer body and inner assembly fitted with a precision alignment mechanism. The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance.
Features
MPO connector complied with IEC-61754-7
A quick-to-deploy
Scalable solution
High compatibility,flexibility&system performance
Lower installation cost
Applications
SAN (Storage area Network)data center LAN
LAN/SAN switch equipment distribution area(EDA)
Emerging 40G and 100G protocol
Technical parameters
|
MPO Connector |
Standard SM MT Ferrule |
Low Loss SM MT Ferrule |
Standard MM MT Ferrule |
Low Loss MM MT Ferrule |
||||
|
Polish |
APC |
PC |
APC |
PC |
PC |
PC |
||
|
Insertion Loss(dB) |
Typical |
0.5 |
0.5 |
0.3 |
0.3 |
0.5 |
0.3 |
|
|
Maximun |
0.7 |
0.7 |
0.5 |
0.5 |
0.7 |
0.5 |
||
|
Return Loss（dB） |
60 |
45 |
60 |
45 |
20 |
20 |
||
|
Exchangeability(dB） |
≤0.3 |
|||||||
|
Durability（dB） |
≤0.2dB (500 Matings,per EIA-455-21A) |
|||||||
|
Tensile Strength（dB） |
≤0.3dB (Max 66N) |
|||||||
|
Operating temperature（℃） |
-20~+60 |
|||||||
|
Storage temperature（℃） |
-40~+80 |
|||||||

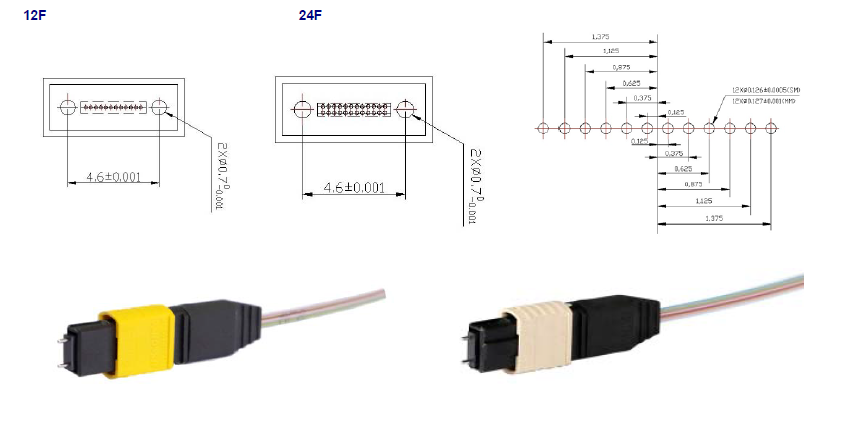

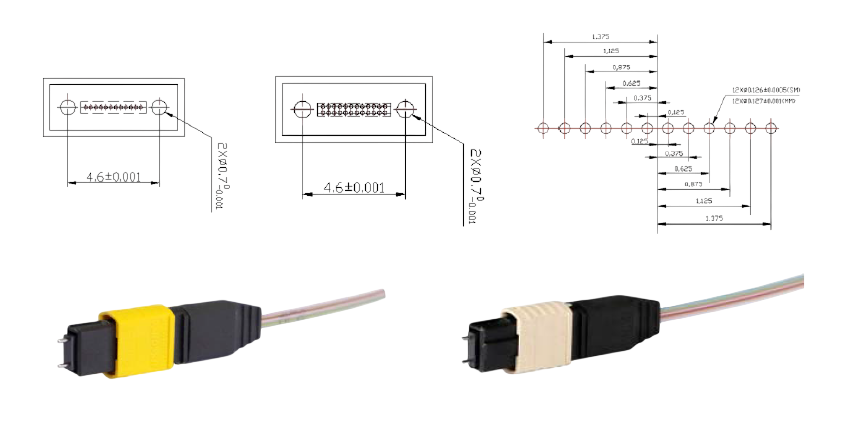

MT Ferrule(Male&FEmale)
![JUL3G1I[K$P$MO%8PO]7{M0.png](/ru/storage/uploads/20250819/68b5e349e15390d5c753c0e213ad7358.png "JUL3G1I[K$P$MO%8PO]7{M0.png")
|
Cable type |
Description |
|
|
Round housing Kits Female and Male----Cable Boot, Crimp Ring, Spring Push, Spring, Pin Clamp Assembly(Female or Male),Housing Assembly |
|
MPO connector Length 60.2mm |
|
|
Cable Boot 3.0mm or 3.6mm |
|
|
Female & Male MM boots Color---Beige, Aqua, Black, White...Special |
|
|
Female& Male SM boots Color—Green, Yellow, Mustard.....Special |
|
|
|
Oval housing Kits Female and Male----Cable Boot, Crimp Ring, Spring Push, Spring, Pin Clamp Assembly(Female or Male),Housing Assembly |
|
MPO connector Length 45.6mm |
|
|
Female & Male MM boots Color---Beige, Aqua, Black, White...Special |
|
|
Female& Male SM boots Color—Green, Yellow, Mustard.....Special |
|
|
|
Bare Ribbon Housing Kits Female and Male----Cable Boot, Crimp Ring, Spring Push, Spring, Pin Clamp Assembly(Female or Male),Housing Assembly |
|
MPO connector Length 43.0mm |
|
|
Female & Male MM boots Color---Beige, Aqua, Black, White...Special |
|
|
Female& Male SM boots Color—Green, Yellow, Mustard.....Special |

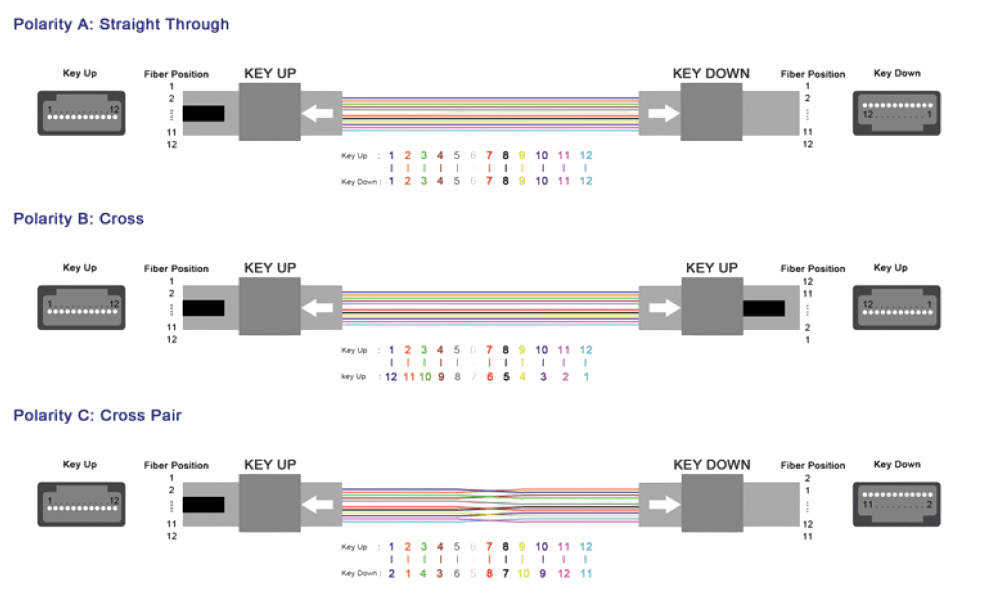

MPO Communication Marks Division
![CQC6Q}K%JK%M6LEUF2[]N{C.png](/ru/storage/uploads/20250819/b9b62feea882ada1ef2653519f24b3fe.png "CQC6Q}K%JK%M6LEUF2[]N{C.png")
Order information
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
|
MPO Polish |
Housing Color |
Cable Type |
Fiber Type |
Fiber Count |
Cable Length |
Pigtail Length |
Polarity |
Connector Type |
|
1：UPC |
1：Beige |
1：Bare-Ribbon |
1：SM 9/125 G652D |
8：8 |
5：0.5m |
5：0.5m |
A：Polarity A |
1：MPO-Female |
|
2：APC 8 degree |
2：Aqua |
2：Oval |
2：SM 9/125 G657A |
2：12 |
10：1.0m |
10：1.0m |
B：Polarity B |
2：MPO-Male |
|
3：Green |
3：Round |
3：MM 50/125 (OM2) |
24：24 |
20：2.0m |
15：1.5m |
C：Polarity C |
3：FC/APC |
|
|
4：Yellow |
0：other |
4：MM 50/125 (OM3) |
48：48 |
30：3.0mS |
20：2.0m |
4：FC/UPC |
||
|
5：Black |
5：MM 50/125 (OM4) |
72：72 |
0：other |
25：2.5m |
5：SC/APC |
|||
|
6：Red |
6：MM 62.5/125 (OM1) |
96：96 |
30:3.0mS |
6：SC/UPC |
||||
|
0：other |
144：144 |
0：other |
7：LC/APC |
|||||
|
0：other |
8：LC/UPC |
|||||||
|
9：STMU |
||||||||
|
0：other |
Если вам нужна дополнительная информация, пожалуйста, свяжитесь с нами.
