Устройство CWDM
Features
Low Insertion Loss
Wide pass band
High Channel Isolation
High Stability and reliability
Epoxy-free on Optical Path
Applications
Line monitoring
DWDM Network
Telecommunication
Fiber Optical Amplifier
Cellular application
Access network
Technical Specification
|
Parameters |
Unit |
HC-CWDM |
|
|
Wavelength Range |
nm |
1260 ~ 1620 |
|
|
Channel Center Wavelength |
nm |
1270 / 1290 / … / 1610 or 1271 / 1291 / … / 1611 |
|
|
Channel Spacing |
nm |
20 |
|
|
Channel Passband |
nm |
λc ± 7.5 |
|
|
Insertion Loss |
dB |
Transmission: ≤0.6 |
|
|
Reflection: ≤0.4 |
|||
|
Adjacent Channel Isolation |
dB |
≥ 30 |
|
|
Non-adjacent Channel Isolation |
dB |
≥ 40 |
|
|
Reflection Channel Isolation |
dB |
≥ 15 |
|
|
PDL |
dB |
≤ 0.1 |
|
|
Wavelength thermal stability |
nm/℃ |
≤ 0.003 |
|
|
Insertion loss thermal stability |
dB/℃ |
≤ 0.005 |
|
|
Return loss |
dB |
≥ 45 |
|
|
Optical Power |
mW |
≤ 500 |
|
|
Operating Temperature |
℃ |
-10 ~ +70 |
|
|
Storage Temperature |
℃ |
-40 ~ +85 |
|
|
Relative Humidity |
% |
5 ~ 95 |
|
|
Dimension |
mm |
Φ5.5×38 |
Φ4.0×25 |
|
Note: 1. Customization is available. |
|||
* 1、Above specifications are for devices without connector.2、Specifications may change without notice.
Dimension (Unit:mm)

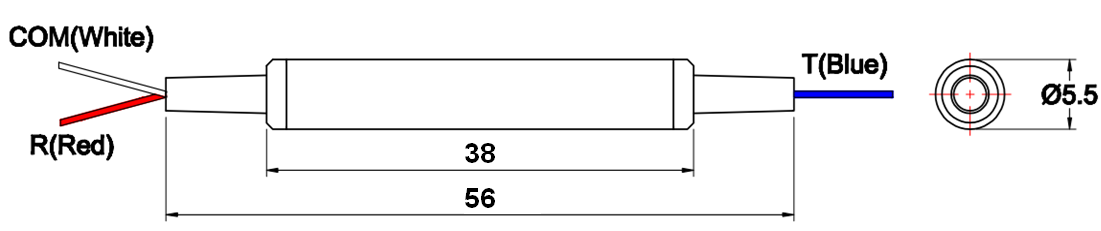

Φ5.5×38 mm

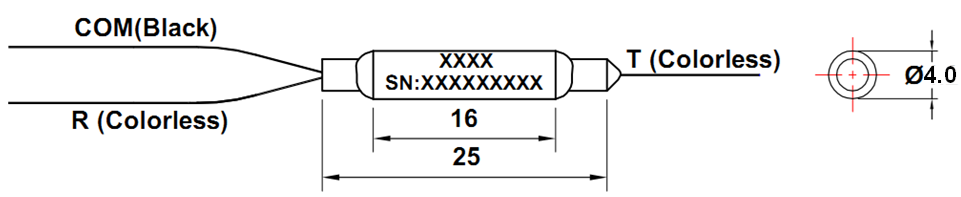

Φ4.0×25 mm
Ordering Information HC－CWDM－A－B－C－D - E
|
A |
B |
C |
D |
E |
|
Channel Center Wavelength |
Tube Type |
Fiber Length (Include connector) |
Connector |
Dimension |
|
Txxxx: xxxxnm
(xxxx =Channel Center Wavelength) eg. T1470: 1470nm |
25:250um 90:900um X: Others
|
05: 0.5m±0.05m 10: 1.0m±0.05m 15: 1.5m±0.05m X: Others |
OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC LP: LC/PC LA: LC/APC X: Others |
5534:Φ5.5×34mm 4225:Φ4.2×25mm X: Others |
