Модуль 100G, 200G DWDM OADM
Features
Wide pass band
Low Insertion Loss
High Channel Isolation
Epoxy-free on Optical Path
High Stability and reliability
ITU channel spacingWide pass band
Applications
DWDM Network
Channel Add/Drop
Wavlength Routing
Fiber Optical Amplifier
CATV fiberoptic System
Technical Parameter
|
Parameter |
4 Channel |
8 Channel |
||||
|
Mux |
Demux |
Mux |
Demux |
|||
|
Channel Wavelength (nm) |
ITU Grid |
|||||
|
Channel Spacing (GHz) |
100/200 |
|||||
|
Channel Passband (@-0.5dB bandwidth (nm) |
>0.22(100G)/>0.5(200G) |
|||||
|
Insertion Loss (dB) |
In---Drop@drop |
2.0 |
3.2 |
|||
|
Add---Out@add |
2.0 |
3.2 |
||||
|
In---Out@other |
2.5 |
5.0 |
||||
|
Isolation (dB) |
Adjacent |
N/A |
>30 |
N/A |
>30 |
|
|
Non-adjacent |
N/A |
>40 |
N/A |
>40 |
||
|
Add/Drop Channel Ripple（dB） |
<0.3 |
|||||
|
Inertion Loss Temperature Sensitivity(dB/℃) |
<0.005 |
|||||
|
Wavelength Temperature Shifting(nm/℃) |
<0.002 |
|||||
|
Polarization Dependent Loss（dB） |
<0.1 |
|||||
|
Polarization Mode Dispersion（ps） |
<0.1 |
|||||
|
Directivity（dB） |
>50 |
|||||
|
Return Loss（dB） |
>45 |
|||||
|
Maximum Power Handling（mW） |
300 |
|||||
|
Opterating Temperature(℃) |
-10~+75 |
|||||
|
Storage Temperature(℃) |
-40~+85 |
|||||
|
Package dimension (mm) |
L100×W80×H10 |
|||||
|
L120×W80×H18 |
||||||
|
L141×W115×H18 |
||||||
- 1、Above specifications are for devices without connector.
- 2、Specifications may change without notice.
Dimension (Unit:mm)

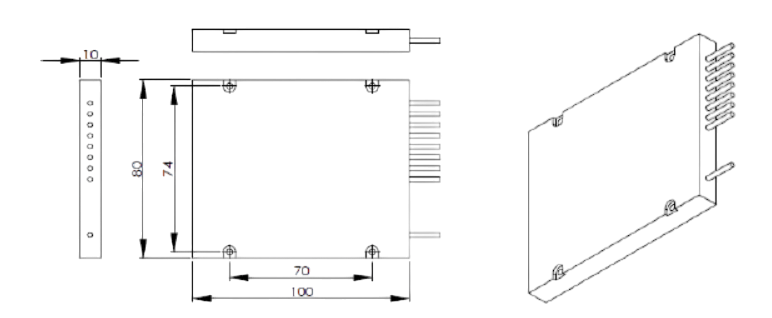

100×80×10mm

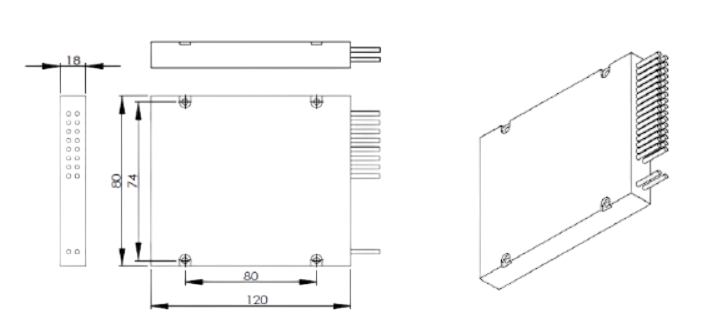

120×80×18mm

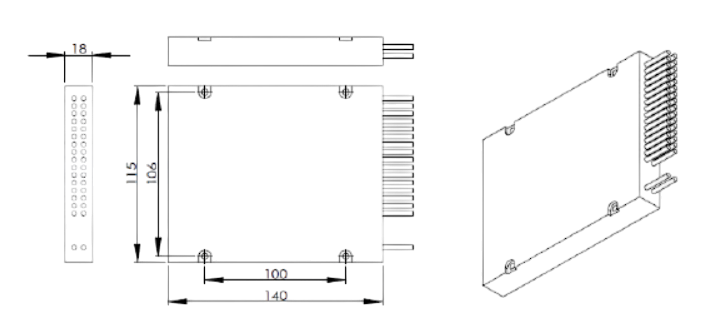

140×115×18mm
Ordering Information HC－D-OADM－A－B－C－D－E－F - G
|
A |
B |
C |
D |
E |
F |
G |
|
Channel Spacing |
Number of Channels |
Configuration |
1st Channel |
Fiber Type |
Fiber Length |
In/Out Connector |
|
1=100GHz |
04=4 Channel 08=8 Channel
|
M=Mux D=Demux |
21=Ch21 …… 34=Ch34 …… 50=Ch50 …… |
1=Barefiber 2=900um loose tube 3=2mm Cable 4=3mm Cable |
1=1m 2=2m S=Specify |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Specify |
