Features
Low PDL
High Isolation
Low Insertion Loss
Excellent Enviroment Reliability
Applications
WDM System
MAN
CATV System
Technical Parameters
|
Parameter |
HC-8CH-MINI CWDM |
|
|
Center Wavelength （nm） |
1270-1610nm |
|
|
Channel Passband (nm) |
CW±6.5 |
|
|
Insertion Loss (dB) |
≤1.5 |
|
|
Isolation (dB) |
Adjacent |
≥30 |
|
Non-adjacent |
≥40 |
|
|
Polarization Dependent Loss (dB) |
<0.2 |
|
|
Polarization Mode Dispersion (ps) |
<0.2 |
|
|
Directivity (dB) |
≥50 |
|
|
Return Loss (dB) |
≥45 |
|
|
Maximum Power Handling (mW) |
300 |
|
|
Operating Temperature (℃) |
-10~+70 |
|
|
Storage Temperature (℃) |
-40~+85 |
|
|
Package Dimension (mm) |
L44x W28 x H6.2 or L54x W28 x H7.4 |
|
Above specification are for device without connector.
Add an addotional 0.2dB loss per connector.
Dimension(mm)

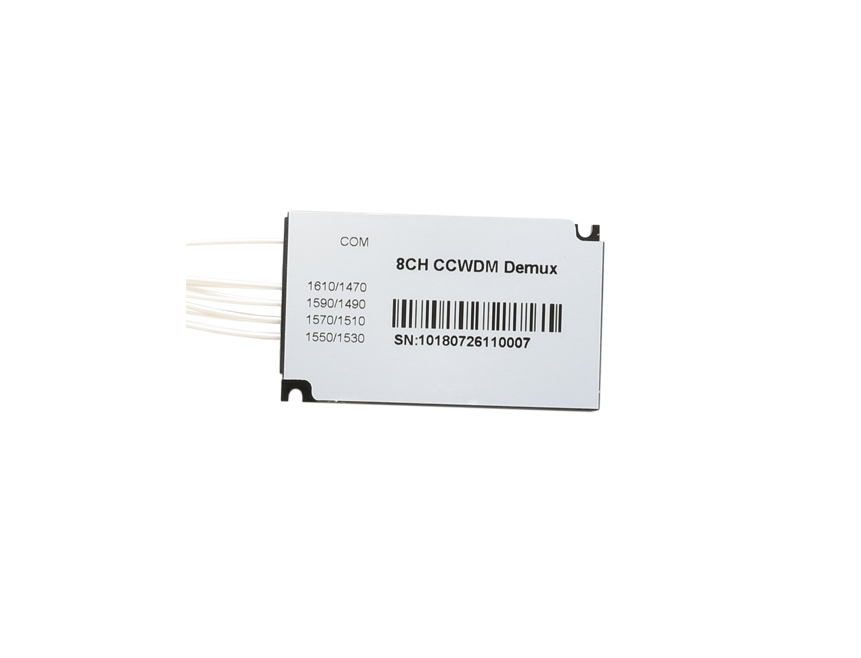

A:L44x W28 x H6.2
B: L54x W28 x H7.4
Order Information: HC-8CH-MINI CWDM-A-B-C-D-E-F
|
Number of Channels |
1st Channel |
Configuration |
Dimension(mm) |
Fiber Type |
Fiber Length |
Connector |
|
A |
B |
C |
D |
E |
F |
|
|
8 Channel
|
27=1270nm …… 47=1470nm …… 61=1610nm |
M=Mux
D=Demux
|
A:L44x W28 x H6.2
B: L54x W28 x H7.4 |
1=Bare fiber
2=900um loose tube
|
1=1m
2=2m
S=Specify |
0=None 1=FC/APC 2=FC/PC 3=FC/UPC 4=SC/APC 5=SC/PC 6=SC/UPC 7=ST 8=LC/UPC 9-LC/APC S=Specif
|
