1x2 поляризованный световой переключатель
Features
Low insertion Loss
Unmatched Low Cost
High Channel Isolation
Epoxy-free on Optical Path
Latching or Non-latching
High Stability, High Reliability
Applications
Optical Network
Network Test System
Protection/Restoration
Optical Singnal Routing
Configurable Optical Add/Drop
Transmitter and receiver protection
Technical Parameters
|
Parameter |
Unit |
FSW-1×2-PM |
||||
|
Operating wavelength |
nm |
1260-1560 |
1310-1600 |
770-1100 |
840-860 |
970-1550 |
|
Test wavelength |
nm |
1310 |
1550 |
780 |
850 |
980 |
|
Fiber type |
|
PM1310 |
PM1550 |
PM780 |
PM850 |
PM980 |
|
Insertion loss |
dB |
≤ 1.0 (bare fiber) ≤ 1.2 (including head) |
||||
|
Extinction ratio |
dB |
≥ 18 (bare fiber) ≥ 16 (including head) |
||||
|
Wavelength dependent loss |
dB |
≤0.25 |
||||
|
Temperature-dependent losses |
dB |
≤0.2 |
||||
|
Polarization dependent loss |
dB |
≤0.05 |
||||
|
Return loss |
dB |
≥50 |
||||
|
Crosstalk |
dB |
≥55 |
||||
|
Repeatability |
dB |
≤±0.02 |
||||
|
Switching time |
ms |
≤8 |
||||
|
Life span |
times |
≥107 |
||||
|
Operating voltage |
V |
3.0 or 5.0 |
||||
|
Maximum optical power |
mW |
≤500 |
||||
|
Operating temperature |
°C |
-5 ~ +70 |
||||
|
Storage temperature |
°C |
-40 ~ +85 |
||||
|
Operating humidity |
% |
5 ~ 95 |
||||
|
Package size |
mm |
L27×W12×H8.2 (±0.2) |
||||
Pin Configurations
|
Type |
Status |
Optical path |
Electronically controlled drive |
Status indication |
||||||
|
Pin1 |
Pin5 |
Pin6 |
Pin10 |
Pin2-3 |
Pin3-4 |
Pin7-8 |
Pin8-9 |
|||
|
Latching |
A |
P1-P2 |
- |
- |
GND |
V+ |
Close |
Open |
Open |
Close |
|
B |
P1-P3 |
GND |
- |
Open |
Close |
Close |
Open |
|||
|
Not latching |
A |
P1-P2 |
- |
- |
- |
- |
Close |
Open |
Open |
Close |
|
B |
P1-P3 |
V+ |
- |
- |
GND |
Open |
Close |
Close |
Open |
|

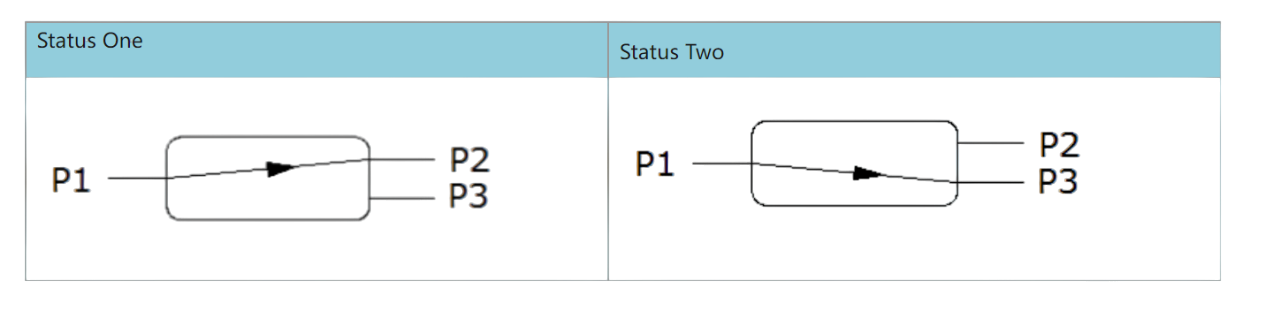

Optical Route
Electrical Specification
|
Type |
Voltage |
Electric current |
Resistance |
|
3 V, latching |
2.7~3.3V |
54~66mA |
50Ω |
|
3 V, non-latching |
2.7~3.3V |
39~47mA |
70Ω |
|
5V, latching |
4.5~5.5V |
36~44mA |
125Ω |
|
5V, non-latching |
4.5~5.5V |
26~32mA |
175Ω |

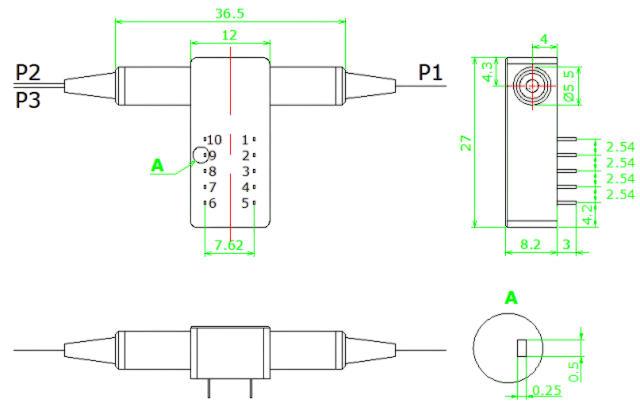

Mechanical Dimensions (Unit:mm)
Ordering Information HC-FSW-1 × 2-PM-A-B-C-D-E-F
|
A |
B |
C |
D |
E |
F |
|
Test wavelength |
Switch type |
Fiber type |
Fiber diameter |
Fiber length |
Connector |
|
780: 780nm |
3 L: 3V Latching |
P78: PM780 |
025: Φ0.25mm |
05: 0.5m |
00: None |
|
850: 850nm |
3N:3V non-latching |
P85: PM850 |
09: Φ0.9mm |
10: 1.0m |
FP: FC/UPC |
|
980: 980nm |
5L: 5V Latching |
P98: PM980 |
X: Other |
15: 1.5m |
FA: FC/APC |
|
1310: 1310nm |
5N:5V non-latching |
P13: PM1310 |
|
X: Other |
SP: SC/UPC |
|
1550: 1550nm |
|
P15: PM1550 |
|
|
SA: SC/APC |
|
X: Other |
|
X: Other |
|
|
LP: LC/UPC |
|
|
|
|
|
|
LA: LC/APC |
|
|
|
|
|
|
X: Other |
