HC-DSL09S001N 136–941 MHz, 1.0W, 3.7 V Broadband RF Power Transistor
N-Channel Enhancement-Mode MOSFET
Designed for handheld two–way radio applications with frequencies from 136 to 941 MHz. The high gain, ruggedness and Broadband performance of this device make it ideal for large–signal, common–source amplifier applications in handheld radio equipment.
Typical Broadband EVB Performance (IDQ=200mA, TA = 25℃, CW)
VDD | Freq. | Pout | Gmax | |
[V] | [MHz] | [dBm] | [Watts] | [dB] |
3.7 | 400 | 31.2 | 1.3 | 18.9 |
440 | 31.1 | 1.3 | 19.1 | |
460 | 31.1 | 1.3 | 18.5 | |
480 | 31.0 | 1.3 | 18.2 | |
Typical Narrowband EVB Performance (IDQ=200mA, TA = 25℃, CW)
VDD | Freq. | Pout | PAE | |
[V] | [MHz] | [dBm] | [Watts] | [%] |
3.7 | 430 | 32.1 | 1.6 | 53.4 |
450 | 32.7 | 1.8 | 57.2 | |
470 | 32.6 | 1.8 | 62.3 | |
Ÿ Capable of Handling 20:1 VSWR@6.0Vdc, 2.0Watts, CW
Features
Ÿ Characterized for Operation from 136 to 941 MHz
Ÿ Unmatched Input and Output Allowing Broad Frequency Range Utilization
Ÿ Integrated ESD Protection
Ÿ Broadband – Full Power Across the Band
Ÿ Exceptional Thermal Performance
Ÿ Extreme Ruggedness
Typical Applications
Ÿ Output Stage VHF Band Handheld Radio
Ÿ Output Stage UHF Band Handheld Radio
Ÿ Output Stage for 700–800 MHz Handheld Radio
Ÿ Driver for 10–1000 MHz Applications
Table1. Maximum Ratings
Rating | Symbol | Value | Unit |
Drain-Source Voltage | VDSS | –0.5, +20 | Vdc |
Gate-Source Voltage | VGS | –5.0, +8 | Vdc |
Operating Voltage | VDD | 0, +6 | Vdc |
Storage Temperature Range | Tstg | –65 to +150 | ℃ |
Case Operating Temperature | TC | –40 to +150 | ℃ |
Operating Junction Temperature | TJ | –40 to +150 | ℃ |
Power Dissipation @TC=25℃ | PD | 5 | W |
Table2. ESD Protection Characteristic
Test Methodology | Class |
Human Body Model (per JESD22--A114) | 2, passes 2500 V |
Machine Model (per EIA/JESD22--A115) | A, passes 100 V |
Charge Device Model (per JESD22--C101) | IV, passes 2000 V |
Table3. Electrical Characteristics (TA=25℃ unless otherwise noted)
Characteristic | Symbol | Min | Typ. | Max | Unit |
Off Characteristics
Gate-Source Leakage Current (VGS=5Vdc, VDS=0Vdc) | IGSS | - | - | 1 | uAdc |
Zero Gate Voltage Drain Leakage Current (VDS=16Vdc, VGS=0Vdc) | IDSS | - | - | 2 | μAdc |
Zero Gate Voltage Drain Leakage Current (VDS=3.7Vdc, VGS=0Vdc) | IDSS | - | - | 1 | μAdc |
On Characteristics
Gate Threshold Voltage (VDS=3.7Vdc, ID=1mA) | VGS(th) | 1.2 | 1.5 | 1.8 | Vdc |
Gate Quiescent Voltage (VDD=3.7Vdc, ID=200mA Measured in Functional Test) | VGS(Q) | 1.3 | 2.0 | 2.7 | Vdc |
Drain-Source On-Voltage (VGS=5Vdc, ID=200mA) | VDS(ON) | - | 0.09 | - | Vdc |
Dynamic Characteristics
Reverse Transfer Capacitance (VDG=3.7V, Level=30mVac@1MHz) | Crss | - | 2.4 | - | pF |
Output Capacitance (VDS=3.7V, Level=30mVac@1MHz) | Coss | - | 9.1 | - | pF |
Input Capacitance (VGS=5V, Level=30mVac@1MHz) | Ciss | - | 32.0 | - | pF |
Typical Performances (In DuSemi Narrowband Test DEMO, 50 Ohm system)
Frequency=450MHz, VDS=3.7Vdc, IDQ=200mA, TA=25℃
Power Gain | GPS | - | 19 | - | dB |
Output Power
| Pout | - | 31 | - | dBm |
Drain Efficiency | ηD | - | 60 | - | % |

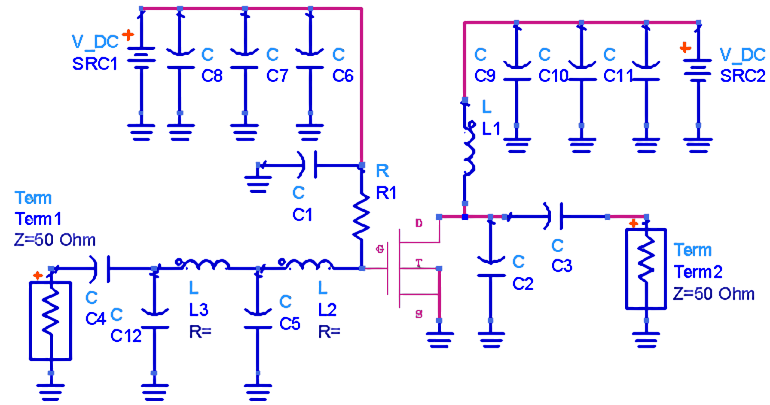

Broad Band Evaluation Circuit (@VDD = 3.7V, f = 440 MHz)
Test Circuit Component Layout
Table4. Test Circuit Component Designations and Value
Part | Description | Part Number | Manufacturer |
R1 | 1KOhm | — | — |
L2,L3 | 1nH | — | — |
L1 | 8 Turns D: 0.5 mm, φ 2.4 mm Enamel Wire | — | — |
C1, C3,C4,C6,C9 | 100pF Chip Capacitors | GQM21P5C1H101JB01 | Murata |
C2, C5 | 10pF Chip Capacitors | GRM1885C1H201JA01 | Murata |
C7,C10 | 1000pF Chip Capacitors | GRM1885C1H102JA01 | Murata |
C8,C11 | 10uF,10VChip Capacitors | — | — |
C12 | 18pF Chip Capacitors | — | Murata |
PCB | FR-4 ,0.030”,Ɛr4.5 | — | — |
Typical Characteristics
1、440MHz @Vds, Pout VS Vg
2、440MHz @Vgs， Pout Gain VS Pin
3、Freq@Vds, POUT, Pout Gain VS Pin
Package (Encapusulation)
