法拉第旋转镜
1550nm,钢管封装5.5x35mm,900um,1m,FC/APC
产品描述
1550nm,钢管封装5.5x35mm,900um,1m,FC/APC

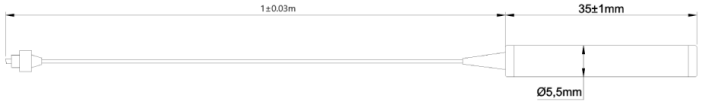

产品尺寸
性能参数
|
参数/Parameters |
Specifications |
Unit |
|
工作波长/Operating Work Wavelength |
1550+/-30nm |
nm |
|
插入损耗/Insertion Loss |
≤0.6 |
dB |
|
单向旋转角/Single Faraday Angle |
45+/-1 |
° |
|
偏振相关损耗/PDL |
0.05 |
dB |
|
偏振模色散/PMD |
0.05 |
dB |
|
最大光功率/Maximum Power Handing |
300 |
mW |
|
工作温度/Operating Temperature |
-5~+70 |
℃ |
|
储存温度/Storage Temperature |
-40~+85 |
℃ |
|
光纤类型/Fiber Type |
SFM-28e fiber with 900um loose tube |
/ |
|
光纤长度/Fiber Length |
1.0+/-0.03 |
m |
|
连接类型/Connect Type |
FC/APC |
/ |
|
封装尺寸/Package size |
Φ5.5*L35 |
mm |
* 备注/Notes: 1.所有插入损耗值包括连接头之损耗值/All insertion loss values do not include the loss of the connector
