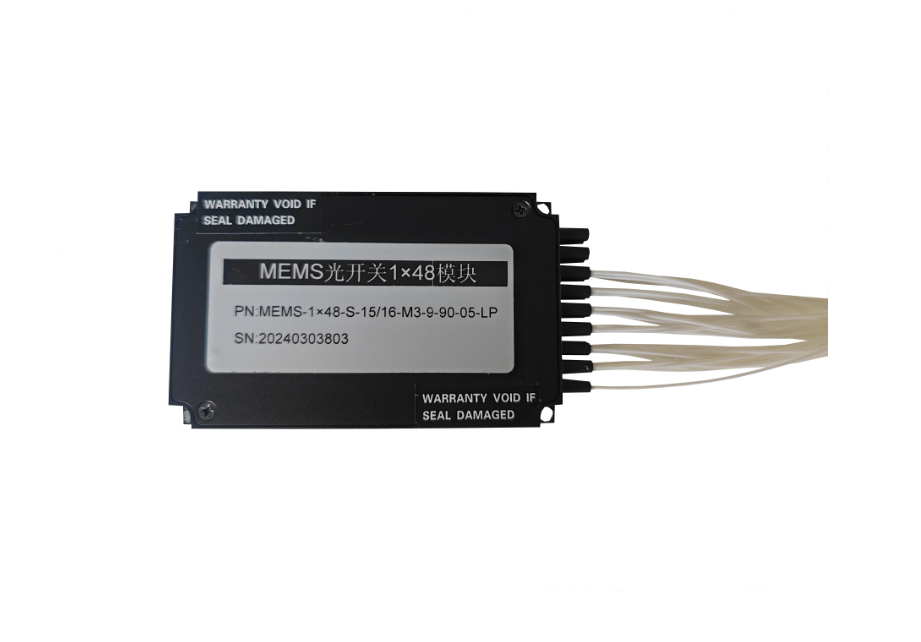

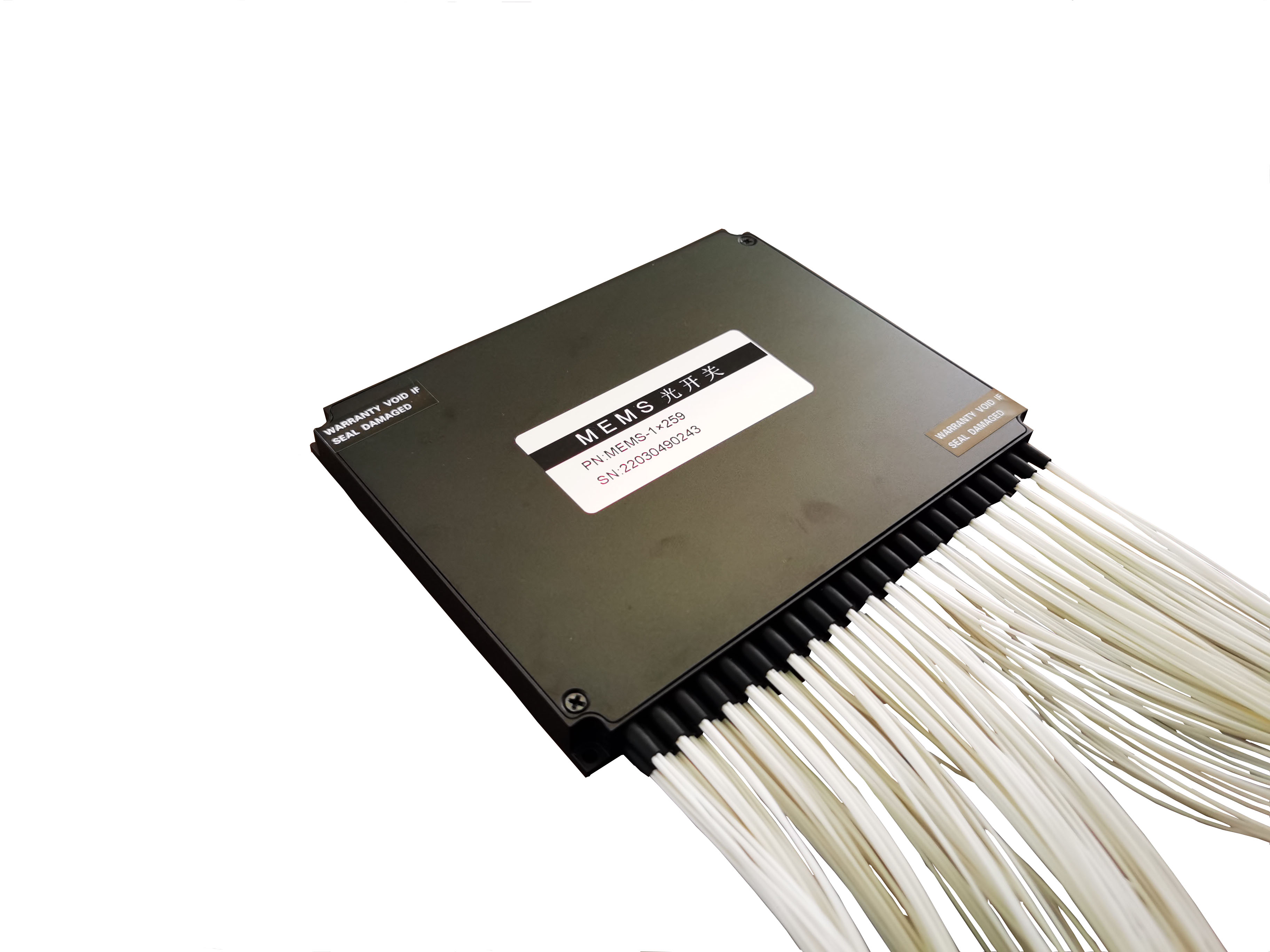

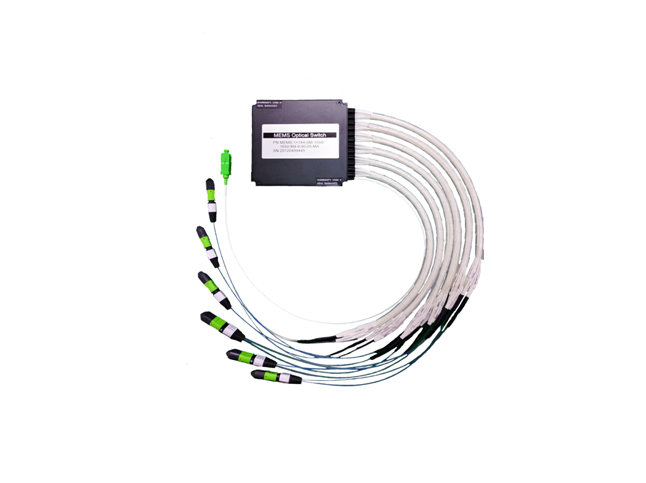

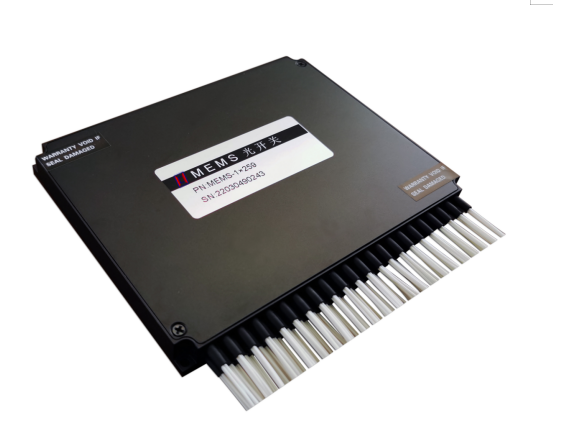

MEMS光开关1×N模块
Features
Mini Size
Fast Switch Speed
Low Insertion Loss & PDL
Wide Operating Wavelength Range
High Reliability & Stability
Applications
Network Monitor System
Remote Fiber Testing System
Module & System Integration
Instrumentation
Compliance
Telcordia GR-1221
Telcordia GR-1073

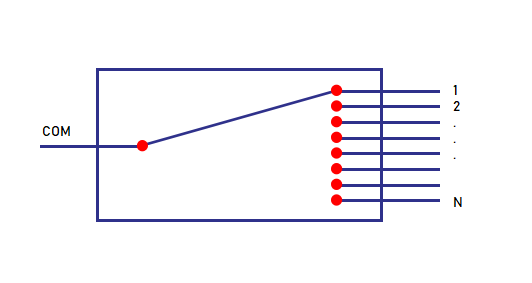

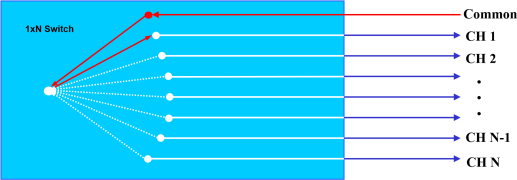

Optical Route

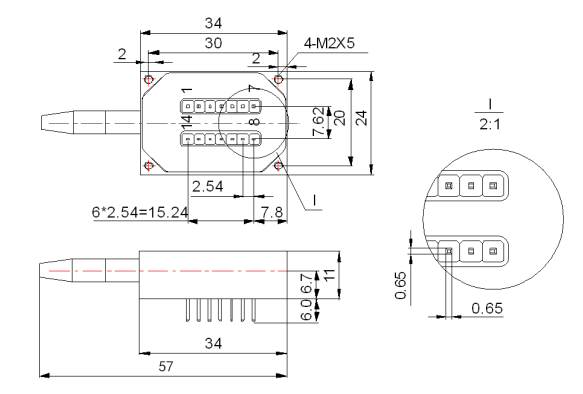

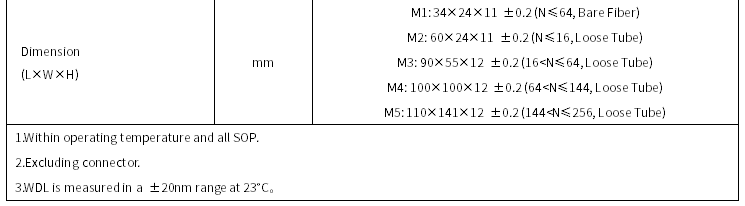

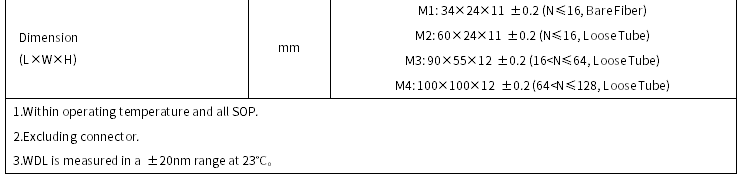

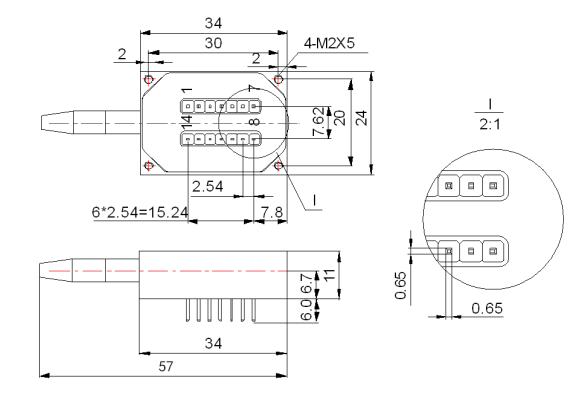

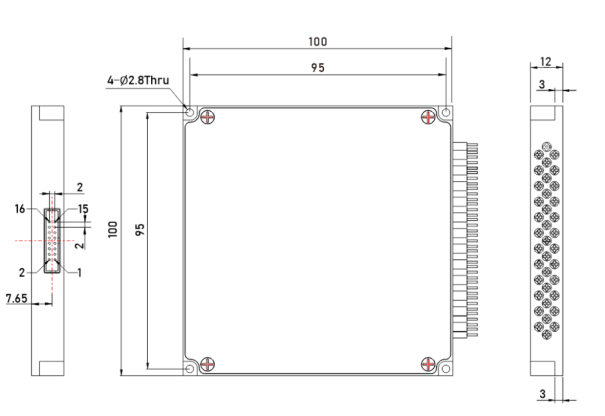

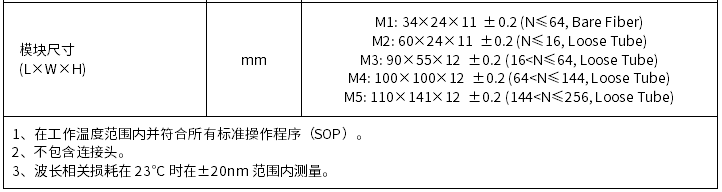

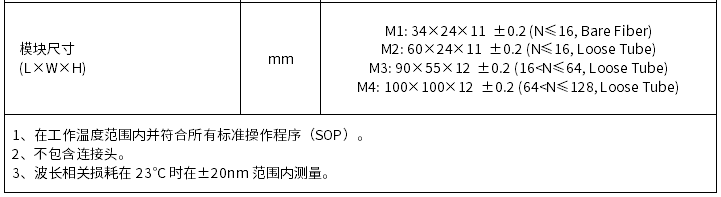

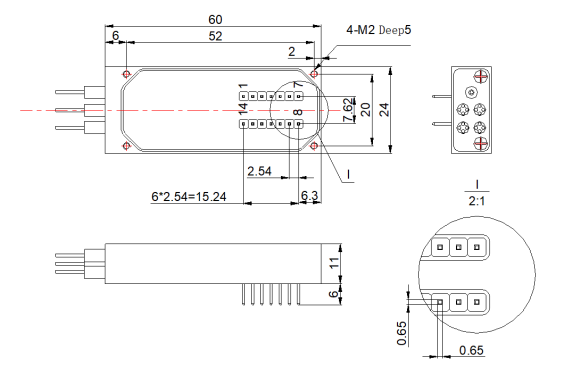

Dimension(mm)
M1: 34×24×11mm

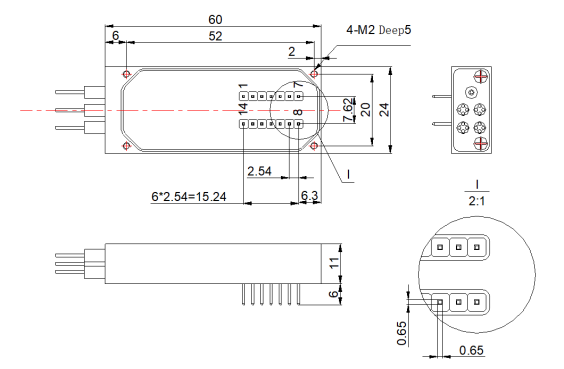

M2: 60×24×11mm

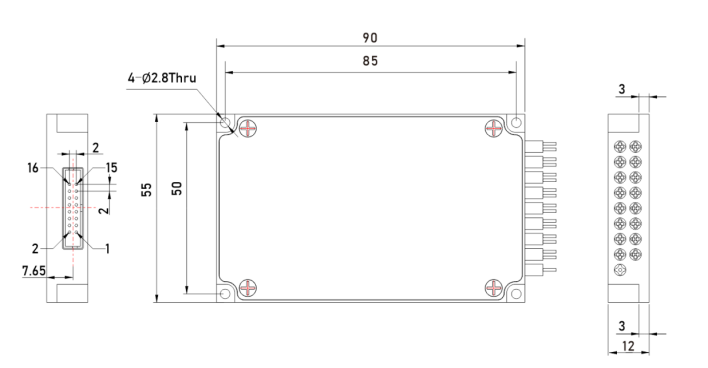

M3: 90×55×12mm

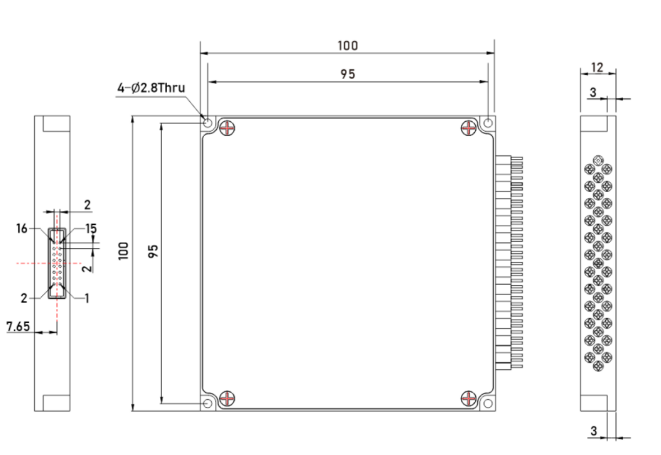

M4: 100×100×12mm

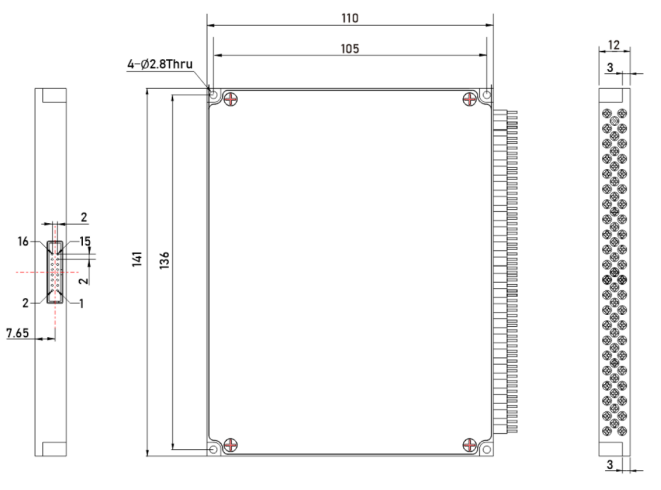

M5: 110×141×12mm

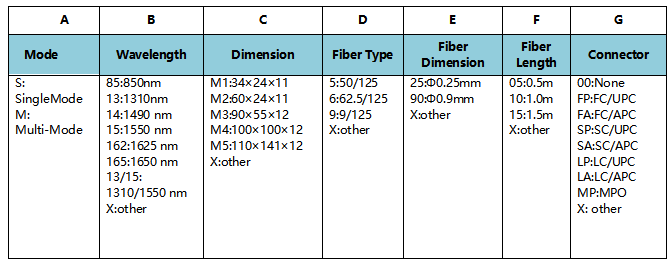

Ordering Information: HC-MEMS-1×N-A-B-C-D-E-F-G
|
A |
B |
C |
D |
E |
F |
G |
|
Mode |
Wavelength |
Dimension |
Fiber Type |
Fiber Dimension |
Fiber Length |
Connector |
|
S: SingleMode M: Multi-Mode |
85:850nm 13:1310nm 14:1490 nm 15:1550 nm 162:1625 nm 165:1650 nm 13/15: 1310/1550 nm X:other |
M1:34×24×11 M2:60×24×11 M3:90×55×12 M4:100×100×12 M5:110×141×12 X:other |
5:50/125 6:62.5/125 9:9/125 X:other |
25:Φ0.25mm 90:Φ0.9mm X:other |
05:0.5m 10:1.0m 15:1.5m X:other
|
00:None FP:FC/UPC FA:FC/APC SP:SC/UPC SA:SC/APC LP:LC/UPC LA:LC/APC MP:MPO X: other |

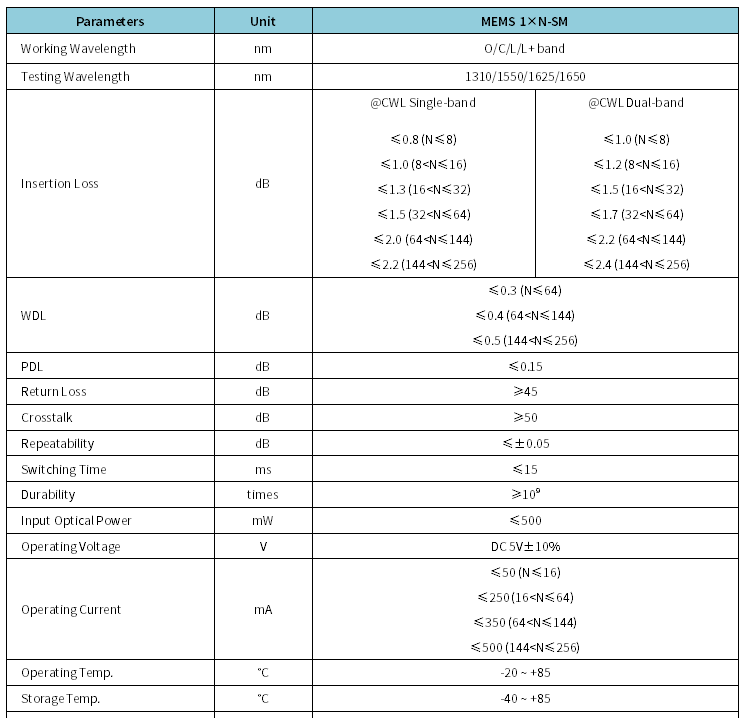

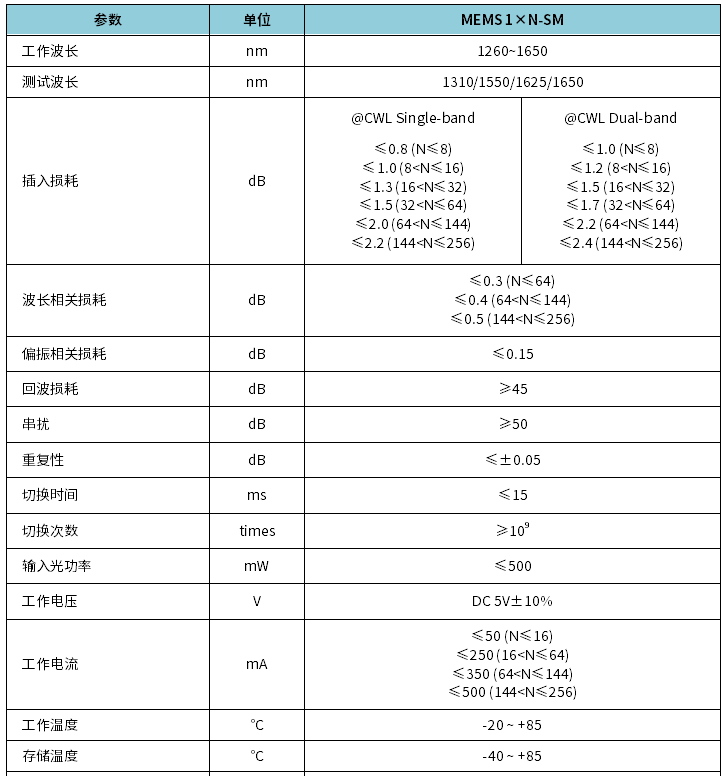

Single Mode

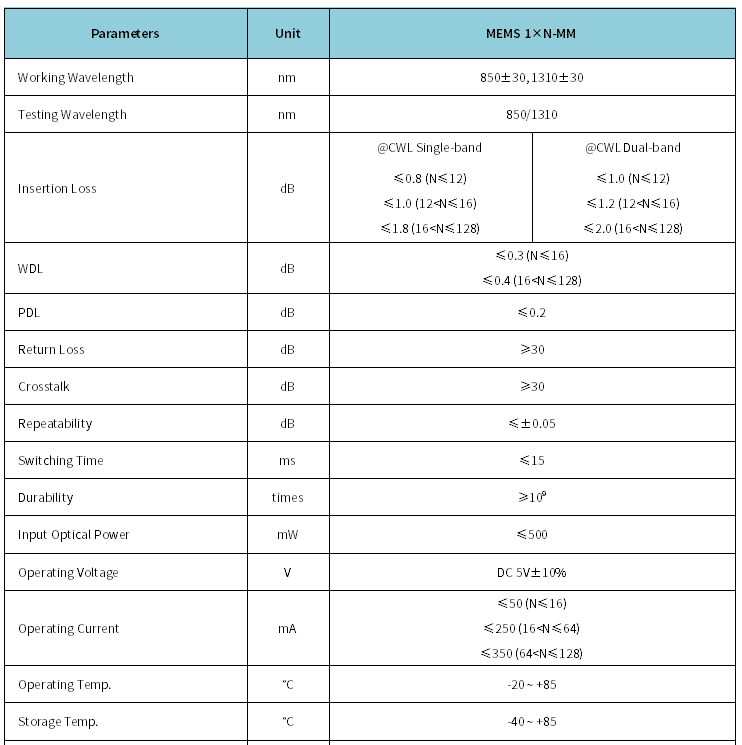

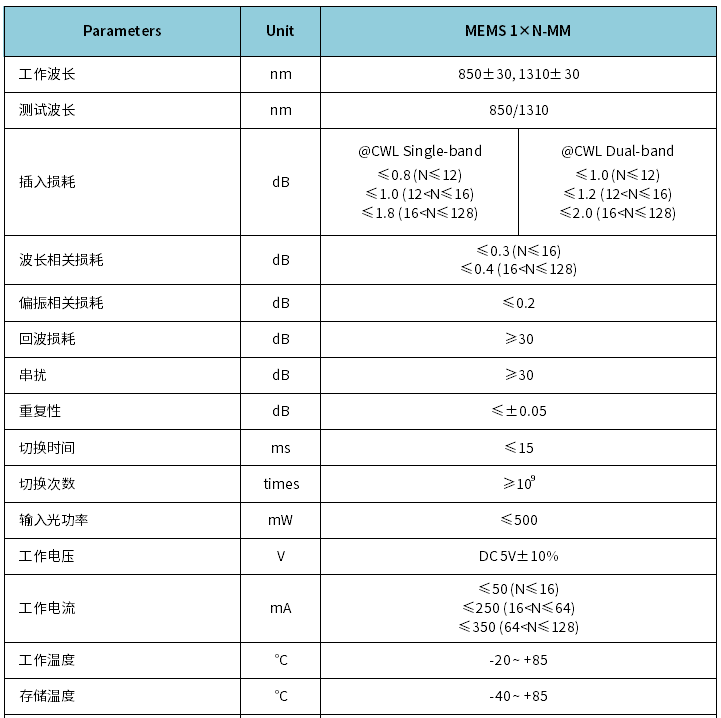

Multi-Mode
Pin Configurations
|
Pin No. |
Pin Assignment |
Signal Type |
Description |
|
|
M1/M2 |
M3/M4/M5 |
|||
|
5 |
1 |
D0 |
Input |
Data bit (D0) (low-order) |
|
|
2 |
D5 |
Input |
Data bit (D5) |
|
2 |
3 |
VCC |
Power |
Power Supply (DC 5V,1.0A) |
|
|
4 |
D7 |
Input |
Data bit (D7) (high-order) |
|
|
5 |
D6 |
Input |
Data bit (D6) |
|
4 |
6 |
GND |
Power |
GND |
|
|
7 |
D4 |
Input |
Data bit (D4) |
|
6 |
8 |
D1 |
Input |
Data bit (D1) |
|
9 |
9 |
TXD |
Output |
Data Transmit (TTL Level) |
|
10 |
10 |
RXD |
Input |
Data Receive (TTL Level) |
|
7 |
11 |
D2 |
Input |
Data bit (D2) |
|
8 |
12 |
D3 |
Input |
Data bit (D3) |
|
12 |
13 |
/BUSY |
Output |
Low level means ready to reset or receiving data |
|
|
14 |
/ALARM |
Output |
High level means running error |
|
3 |
15 |
/STROBE |
Input |
Falling edge execution data bit |
|
14 |
16 |
/RESET |
Input |
Low level reset to channel 0 |
|
11 |
|
GND |
Power |
GND |
|
13 |
|
MODE |
|
Low level: data bit control switch. High level: UART control switch |
|
1 |
|
NC |
|
No connection |
Notes:
1. The electrical interfaces of M3, M4 and M5 modules is Molex 87833-1620. Molex 87568-1694 connector is recommended.
2. Only the serial port is available if the number of channels exceeds 16 when using M1 and M2.
