小型光开关MINI 1×3/1×4
Feature
Compact structure
Low IL
Fast switch time
Application
PON Network
Protection
Instrumentation
Network monitor
Dimension(mm)

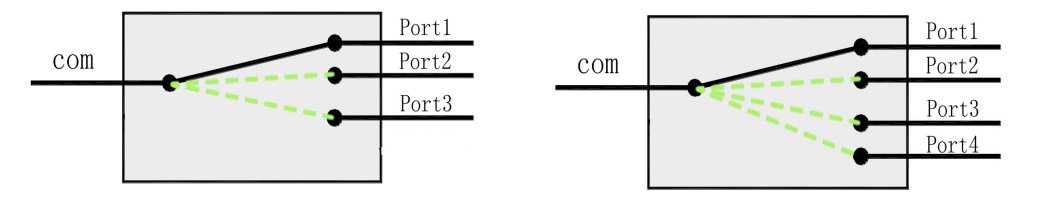

Optical Route
Ordering Information: HC－OSW-A-B-C-D-E-F-G
|
A |
B |
C |
D |
E |
F |
G |
|
Type |
Test Wavelength |
Type |
Fiber Type |
Fiber Dimension |
Fiber Length |
Connector |
|
Mini 1x3 |
850: 850nm |
3L: Latching |
SM: Single Mode |
025: Φ0.25mm |
05: 0.5m |
00: None |
|
Mini 1x4 |
1310: 1310nm |
3N: Non-latching |
M1:Multi-mode 50/125 |
09: Φ0.9mm |
10: 1.0m |
FP: FC/UPC |
|
|
1550: 1550nm |
5L: Latching |
M2:Multi-mode62.5/125 |
X: other |
15: 1.5m |
FA: FC/APC |
|
|
D:1310/1550nm |
5N: Non-latching |
X: other |
|
X: other |
SP: SC/UPC |
|
|
X: other |
|
|
|
|
SA: SC/APC |
|
|
|
|
|
|
|
LP: LC/UPC |
|
|
|
|
|
|
|
LA: LC/APC |
|
|
|
|
|
|
|
X: other |
|
Parameters |
Unit |
Specifications |
|
|
Operating Wavelength |
nm |
1260~1620 for SM, 850~1300 for MM |
|
|
Insertion Loss |
Mini 1x3 |
dB |
≤1.0（typical：0.8） |
|
Mini 1x4 |
dB |
||
|
Wavelength Dependent Loss |
dB |
≤0.25 |
|
|
Temperature Dependent Loss |
dB |
≤0.2 |
|
|
Polarization Dependent Loss |
dB |
≤0.05 |
|
|
Return Loss |
dB |
SM≥50, MM≥30 |
|
|
Crosstalk |
dB |
SM≥55, MM≥35 |
|
|
Repeatability |
dB |
≤±0.02 |
|
|
Switch Time |
ms |
≤8 |
|
|
Durability |
times |
≥10 million |
|
|
Operating Voltage |
V |
3.0 or 5.0 |
|
|
Optical Power |
mw |
≤500 |
|
|
Operating Temperature |
℃ |
-5~+70 |
|
|
Storage Temperature |
℃ |
-40~+85 |
|
|
Operating Humidity |
℃ |
5~95 |
|
|
Dimension |
mm |
L20xW17.6xH8.0(±0.2) |
|
|
Note: 1.Within operating temperature and all SOP. 2.Excluding connector, and add 0.3dB IL for a pair of connectors. |
|||
Pin Configurations
|
Type |
State |
Optical Route |
Electric Drive |
State Sensor |
||||||
|
Mini1x3 |
|
|
① |
② |
① |
② |
||||
|
Pin1 |
Pin8 |
Pin1 |
Pin8 |
Pin 2-3 Pin 6-7 |
Pin 3-4 Pin 5-6 |
Pin 2-3 Pin 6-7 |
Pin 3-4 Pin 5-6 |
|||
|
Latching |
A |
COM-Port1 |
GND |
V+ |
GND |
V+ |
Close |
Open |
Close |
Open |
|
B |
COM-Port2 |
V+ |
GND |
GND |
V+ |
Open |
Close |
Close |
Open |
|
|
C |
COM-Port3 |
GND |
V+ |
V+ |
GND |
Close |
Open |
Open |
Close |
|
|
Non-latching |
A |
COM-Port1 |
- |
- |
- |
- |
Close |
Open |
Close |
Open |
|
B |
COM-Port2 |
V+ |
GND |
- |
- |
Open |
Close |
Close |
Open |
|
|
C |
COM-Port3 |
- |
- |
V+ |
GND |
Close |
Open |
Open |
Close |
|
|
Type |
State |
Optical Route |
Electric Drive |
State Sensor |
||||||
|
Mini1x4 |
|
|
① |
② |
① |
② |
||||
|
Pin1 |
Pin8 |
Pin1 |
Pin8 |
Pin 2-3 Pin 6-7 |
Pin 3-4 Pin 5-6 |
Pin 2-3 Pin 6-7 |
Pin 3-4 Pin 5-6 |
|||
|
Latching |
A |
COM-Port1 |
GND |
V+ |
GND |
V+ |
Close |
Open |
Close |
Open |
|
B |
COM-Port2 |
V+ |
GND |
GND |
V+ |
Open |
Close |
Close |
Open |
|
|
C |
COM-Port3 |
GND |
V+ |
V+ |
GND |
Close |
Open |
Open |
Close |
|
|
D |
COM-Port4 |
V+ |
GND |
V+ |
GND |
Open |
Close |
Open |
Close |
|
|
Non-latching |
A |
COM-Port1 |
- |
- |
- |
- |
Close |
Open |
Close |
Open |
|
B |
COM-Port2 |
V+ |
GND |
- |
- |
Open |
Close |
Close |
Open |
|
|
C |
COM-Port3 |
- |
- |
V+ |
GND |
Close |
Open |
Open |
Close |
|
|
D |
COM-Port4 |
V+ |
GND |
V+ |
GND |
Open |
Close |
Open |
Close |
|
