矩阵光开关MEMS N×M模块
Features
Modular Design
Non-Blocking Switching
“any-to-any” switch
High Reliability and stability
Application
OADM
OXC
Data Center
Instrumentation
Compliance
Telcordia GR-1221
Telcordia GR-1073
Optical Route
Dimension
M5:110×141×12mm
M6:200×180×18mm
M7:280×240×30mm
M8: 300×400×60
Ordering Information: MEMS M×N-A-B-C-D-E-F-G
|
A |
B |
C |
D |
E |
F |
G |
|
Mode |
Wavelength |
Dimension |
Fiber Type |
Fiber Dimension |
Fiber Length |
Connector |
|
SM:Single Mode |
85:850nm |
M5:M5 |
5:50/125 |
025:Φ0.25mm |
05:0.5m |
00: None |
|
MM:Multi-Mode |
13:1310nm |
M6:M6 |
6:62.5/125 |
09:Φ0.9mm |
10:1.0m |
FP: FC/UPC |
|
|
14:1490nm |
M7: M7 |
9:9/125 |
X:other |
15:1.5m |
FA: FC/APC |
|
|
15:1550nm |
M8: M8 |
X:other |
|
X:other |
SP: SC/UPC |
|
|
162:1625nm |
X:other |
|
|
|
SA: SC/APC |
|
|
165:1650nm |
|
|
|
|
LP: LC/UPC |
|
|
13/15: 1310/1550nm |
|
|
|
|
MP:MPO |
|
|
X:other |
|
|
|
|
X:other |

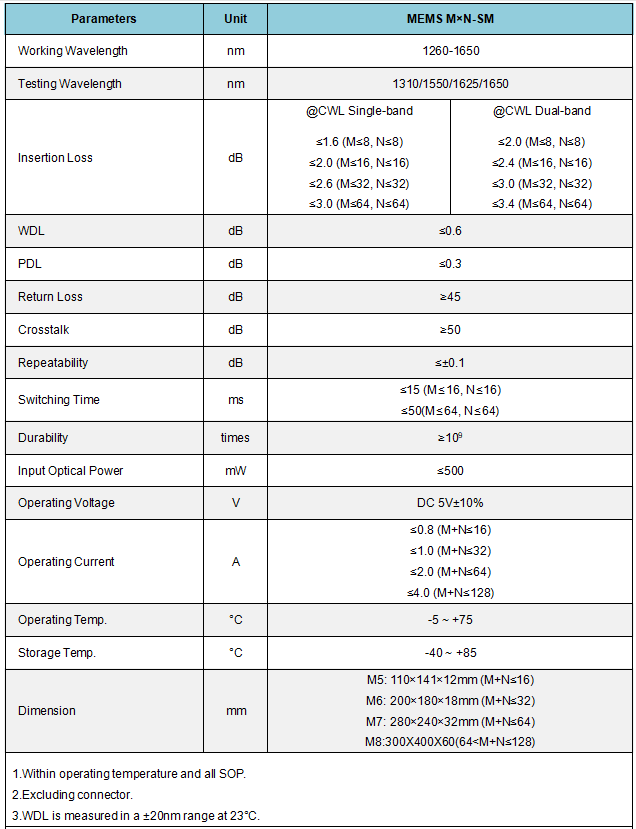

Single Mode

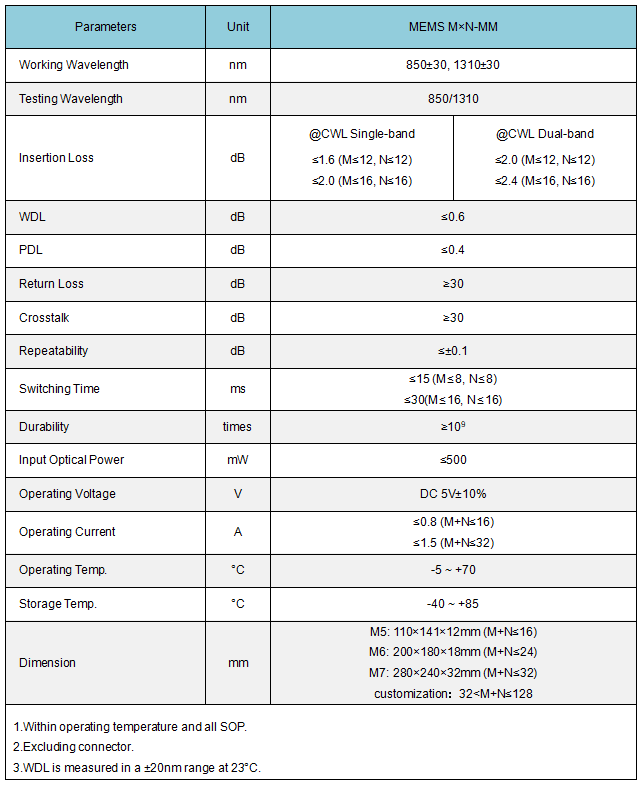

Multi-Mode
Pin Configurations(M5/M6/M7)
|
Pin# |
Signal name |
Type |
Description |
|
1 |
NC |
|
|
|
2 |
NC |
|
|
|
3 |
VCC |
Power |
Power supply，DC 5V，1.0A |
|
4 |
VCC |
Power |
Power supply，DC 5V，1.0A |
|
5 |
GND |
Power |
GND |
|
6 |
GND |
Power |
GND |
|
7 |
NC |
|
|
|
8 |
NC |
|
|
|
9 |
TXD |
Output |
Data Transmit, UART (3.3V LVTTL Level,) |
|
10 |
RXD |
Input |
Data Receive, UART (3.3V LVTTL Level) |
|
11 |
NC |
|
|
|
12 |
NC |
|
|
|
13 |
NC |
|
|
|
14 |
NC |
|
|
|
15 |
NC |
|
|
|
16 |
NC |
|
|
Note: The electrical interfaces of M5, M6 and M7 modules should use MOLEX's 87833-1620, and the customer connectors should use MOLEX's 87568-1694.
Pin Configurations(M8)
|
Pin# |
Signal name |
Type |
电平 |
Description |
|
1 |
+5V |
I |
+5V |
+5V 5A电源 |
|
2 |
+5V |
I |
+5V |
+5V 5A电源 |
|
3 |
GND |
N |
N |
工作地 |
|
4 |
GND |
N |
N |
工作地 |
|
5 |
GND |
N |
N |
工作地 |
|
6 |
Tx |
O |
LVTTL |
Data Transmit, UART (3.3V LVTTL Level,) |
|
7 |
Rx |
I |
LVTTL |
Data Receive, UART (3.3V LVTTL Level) |
