C+ +Band EDFA
Product Introduction
This document specifies the requirements of a DWDM C-band amplifier. The amplifier modules include one gain unit which can be operated at constant gain (Automatic Gain Control AGC) or constant output power (Automatic Power Control, APC). There are isolators at input and output port. Integrated VOA can be closed control for accurate attenuation, in order to achieve smooth gain spectrum for different target gain.
Amplifier diagram as below

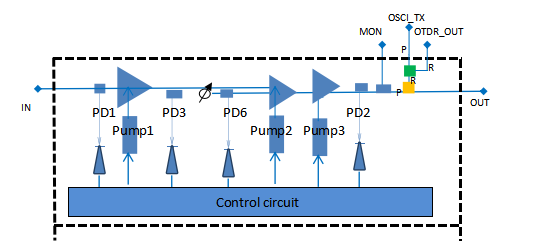

1）BA

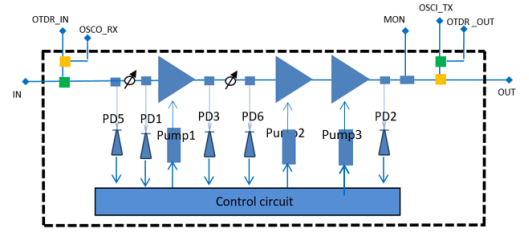

2）PA

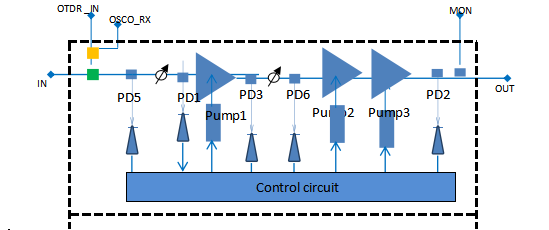

3）LA

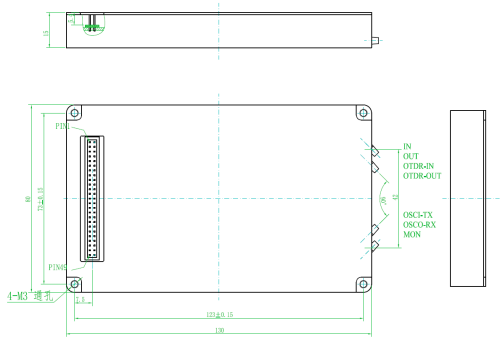

Dimension(unit:mm)
Type A：130×80×15mm (mark: M55)
Performance
Absolute maximum ratings
|
Parameter |
Min |
Max |
Unit |
|
Operating case temperature |
-5 |
55 |
°C |
|
Operating relative humidity |
5 |
95 |
% |
|
Storage Temperature |
-40 |
75 |
°C |
|
Storage relative humidity |
5 |
95 |
% |
|
Power consumption |
|
30 |
W |
Optical characters
|
Parameter |
Units |
BA |
PA/LA |
Notes |
|
24G20V |
24G20VV |
|||
|
Operation wavelength |
nm |
1524~1572.3 |
1524~1572.3 |
|
|
Gain range |
dB |
15 ~ 25 |
15 ~ 25 |
|
|
Max. total output power |
dBm |
≥ + 24 |
≥ + 24 |
|
|
NF |
dB |
G=15, ≤11 |
G=15 ,≤11.5 |
Include WDM and VOA loss |
|
G=20, ≤7.8 |
G=20, ≤8.3 |
|||
|
G=25, ≤6 |
G=25, ≤6.5 |
|||
|
Gain flatness @GT=0 |
dB |
＜ 1.5 |
＜ 1.5 |
@25℃ |
|
＜ 2 |
＜ 2 |
@-5~55℃ |
||
|
Gain tilt /48nm |
dB |
-3～0 |
-3～0 |
0.2dB step |
|
PDG |
dB |
＜0.5 |
＜0.5 |
|
|
Input monitor range |
dBm |
-25～9 |
-25～9 |
|
|
Input alarm threshold |
dBm |
-26 |
-26 |
|
|
Output monitor range |
dBm |
-5~24.5 |
-5~24.5 |
|
|
stability |
dB |
±0.5 |
±0.5 |
|
|
In/out monitor accuracy |
dB |
±0.5 |
±0.5 |
|
|
Output stable time @pump on |
ms |
<100 |
<100 |
|
|
Transient time @Add/drop channels |
ms |
<1 |
<1 |
|
|
Gain overshoot or under shoot @Add/drop channels |
dB |
-2～2 |
-2～2 |
@15 dB A/D |
General specification
|
Item |
Min. |
Typ. |
Max. |
UNITS |
Note |
|
Input/Output Return loss |
45 |
|
|
dB |
|
|
Pass Wavelength of OSC |
1507 |
|
1514 |
nm |
|
|
Pass Wavelength of OTDR |
1600 |
|
1650 |
dB |
|
|
Isolation for OSC to 1550 |
30 |
|
|
dB |
|
|
Isolation for 1550 to OSC |
28 |
|
|
dB |
|
|
Isolation for 1550 to OTDR |
45 |
|
|
dB |
|
|
IL for IN and OSCO |
|
|
1.1 |
dB |
|
|
IL for OUT and OSCI |
|
|
1.1 |
dB |
|
|
IL for OTDR path |
|
|
1.3 |
dB |
|
|
PMD |
|
|
0.5 |
Ps |
|
|
PDG |
|
|
0.5 |
dB |
|
|
MON Coupling ratio |
19 |
|
21.5 |
dB |
1% |
VOA specification
|
Item |
Min. |
Typ. |
Max. |
UNITS |
Note |
|
Wavelength Range |
1524 |
|
1572.3 |
nm |
|
|
Type |
Bright |
|
|
||
|
Insertion loss @home |
|
0.5 |
1 |
dB |
|
|
Attenuation range |
|
|
15 |
dB |
|
|
Attenuation accuracy |
|
|
0.1 |
dB |
|
|
VOA WDL @0~8dB |
|
|
0.5 |
dB |
|
|
VOA WDL @8~15dB |
|
|
1 |
dB |
|
|
Return loss |
40 |
|
|
dB |
|
|
PDL |
|
|
0.5 |
dB |
|
|
VOA Response Time |
|
|
200 |
ms |
|
Pigtail
|
Function |
connector |
Length(cm) |
description |
|
TBD |
LC/UPC |
TBD±2 |
900um,tight,white |
