空间光偏振不敏感隔离器
Description
High Power Polarization Insensitive Free Space Isolator are designed for guarding the laser from back reflected light.
The high transmission efficiency, high isolation, high power handling ability and large aperture features make it flexible to fit different applications in laser protection.
Key Features
High transmission efficiency
High Isolation
High power handling ability
large aperture
Applications
Fiber Lasers
Fiber Optic Instruments

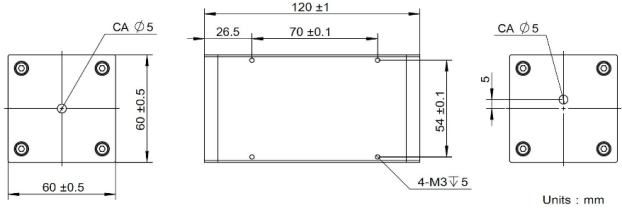

Package Dimensions
Ordering Information：HC-SFPII-A-B-C
|
A |
B |
C |
|
Handling Power |
Aperture (≤5mm) |
|
|
1064=1064nm X=Others |
50=50W 100=100W X=Others |
5 - Φ5.0 mm X=Others |
|
Parameter |
Unit |
Value |
|
Center Wavelength (λc) |
nm |
1064± 10 or Specify |
|
Peak Transmission (λc, 23℃) |
% |
>95 |
|
Peak Isolation (λc, 23℃) |
dB |
>30 |
|
Polarization Dependent Loss |
dB |
<0.2 |
|
Aperture |
mm |
5 or Specify |
|
Optical Average Power |
W |
100 |
|
Operating Temperature |
℃ |
+ 10 to + 30 |
|
Storage Temperature |
℃ |
0 to + 60 |
|
Mechanical Surface Finishing |
|
Bright Silver Anodic Oxidation |
