3端口保偏环形器 盒式
Features
Low Insertion Loss
High Return Loss
High Stability and Reliability
Applications
Fiber Amplifier
Test System
Medical Equipment Wavelength

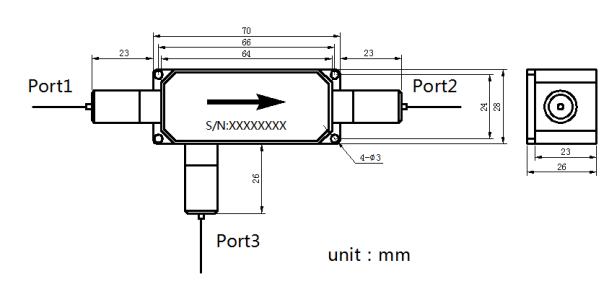

Mechanical Dimensions
Order Information ： HC-PM CIR-A-B-C-D-E-F-G
|
A |
B |
C |
D |
E |
F |
G |
|
Wavelength |
Fiber type |
Working axis |
Fiber diameter |
Fiber Length |
Connector |
|
|
3=3 Ports
|
780=780nm 850=850nm 980=980nm 1030=1030nm 1064=1064nm
|
PM780=780nm,850nm
PM980=980nm,1030nm, 1064nm |
B=Both axis working F= Fast axis blocked |
1=250um 2=900um loose tube
|
05=0.5m 08=0.8m 10=1.0m 15=1.5m |
00=None FU=FC/UPC FA=FC/APC SA=SC/APC SU=SC/UPC LP=LC/PC LA= LC/APC |
|
Parameter |
HC-PM CIR-3 |
|
|
Configuration |
Port 3 |
|
|
Operation Wavelength (nm) |
1064 or 1030 or 980 or 850 or 780 |
|
|
Bandwidth (nm) |
±5 |
|
|
Insertion Loss (dB) |
Typical |
1.3 |
|
Maximum |
1.5 |
|
|
Typical Isolation (dB) |
≥25 |
|
|
Minimum Isolation (dB) |
≥22 |
|
|
Extinction Ratio 23℃ (dB) |
20 |
|
|
Cross Talk (dB) |
≥45 |
|
|
Return Loss（dB） |
≥45 |
|
|
Power Handling (mW) |
300 |
|
|
Opterating Temperature (℃) |
+10~+50 |
|
|
Storage Temperature (℃) |
0~+60 |
|
|
Package dimension (mm) |
70x28x26 |
|
For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower.
The default connector key is aligned to slow axis.
